Overview

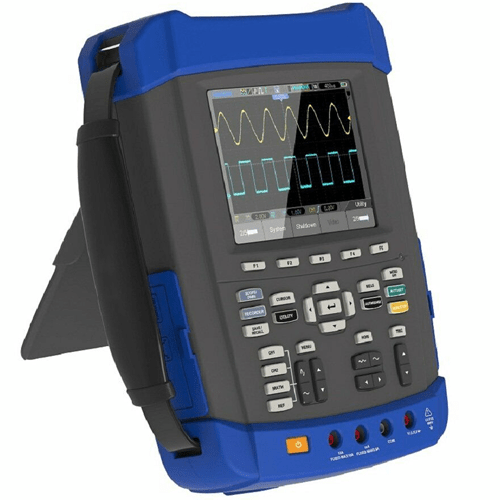

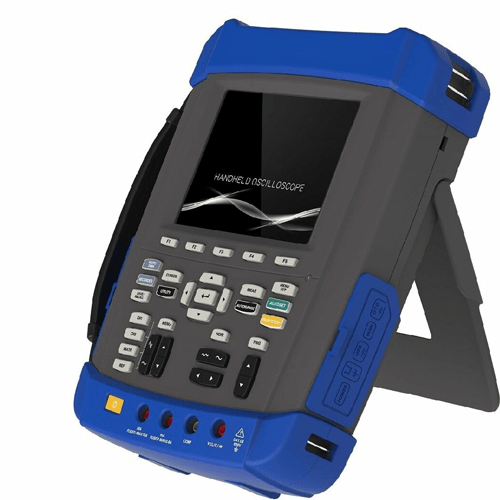

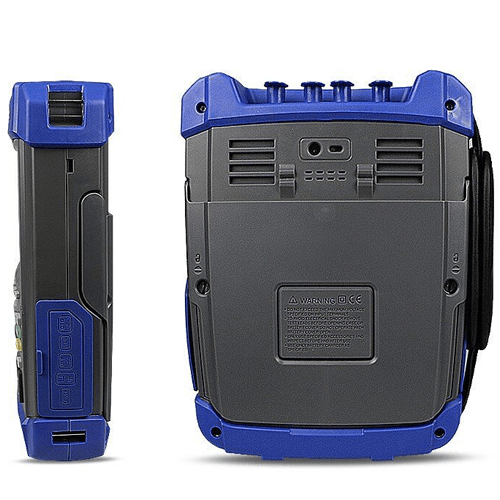

Enviro Test Construct handheld digital oscilloscope has six in one Oscilloscope or Recorder or DMM or Spectrum Analyzer or Frequency Counter or Arbitrary Waveform generator. IP-51 rated for dust, drip and shake proof to withstand harsh environments. Large fuse confirms to European Safety Standard. Battery indicator with easy changed connect points. Selectable 18650 battery box for matching 18650 batteries by yourself. Anti-theft lock hole, tripod fixed hole, hang rope, FLASHLIGHT that can be used in darkness. Replaceable BNC safety joints, and an additional set of joints. 1 GSa or s sample rate, 2M Memory depth, 6000 counts DMM. Large 5.6 in (14.2 cm) TFT Color LCD Display; High Resolution (640 x 480).
Features
- Multifunctional Test Equipment
- IP-51 Rated
- Portable and Durable Design
- High-Bandwidth Performance
- Arbitrary Waveform Generator
- Integrated Digital Multimeter (DMM)
- Spectrum Analyzer
- Versatile Trigger Functions
- Connectivity Options (USB, WIFI or LAN)
Technical Specification
| Sample Modes | Real-Time Sample |
| Normal | Normal data only |
| Peak Detect | High-frequency and random glitch capture |
| Average | Waveform Average, selectable 4,8,16,32,64,128 |
| Inputs Coupling | AC, DC, GND |
| Inputs Impendence | 1 MΩ ±2% 20 pF ±3 pF |
| Probe Attenuation | 1 X, 10 X |
| Supported Probe Attenuation Factor | 1 X, 10 X, 100 X, 1000 X |
| Maximum Input Voltage | CAT I and CAT II: 300 VRMS (10 ×), Installation Category; CAT III: 150 VRMS (1 ×) |
| Sample Rate Range | 1 GS or s |
| Waveform Interpolation | (sin x) or x |
| Record Length | ft (2 m) |
| SEC or DIV Range | 4 ns or div to 2000 s or div, in a 2, 4, 8 sequence, 2 ns or div to 2000 s or div, in a 2, 4, 8 sequence |
| Sample Rate and Delay Time Accuracy | ±50 ppm over any ≥1 ms time interval |
| Scanning Speed Range | 4 ns or div to 8 ns or div; (-8 div x s or div) to 40 ms; 20 ns or div to 80 μs or div;(-8 div × s ordiv) to 40 ms;200 μs or div to 40 s or div;(-8 div × s or div) to 400 s; 2 ns or div to 10 ns or div; (-4 div × s or div) to 20 ms; |
| Delta Time Measurement Accuracy (Full Bandwidth) | Single-shot, Normal mode: ± (1 sample interval +100 ppm × reading + 0.6 ns); >16 averages: ± (1 sample interval + 100 ppm × reading + 0.4 ns); Sample interval = s or div ÷ 200 |
| Vertical Resolution | 8-bit resolution, all channel sampled simultaneously |
| Volts Range | 2 mV or div to 100 V or div at input BNC |
| Bandwidth | 70 MHz, 100 MHz, 150 MHz, 200 MHz |
| Rise Time at BNC (typical) | 5 ns, 3.5 ns, 2.3 ns, 1.8 ns |
| Analog Bandwidth in Normal and Average modes at BNC or with probe, DC Coupled | ±400 V (100 V or div to 20 V or div); ±50 V (10 V or div to 5 V or div); ±40 V (2 V or div to 500 mV or div); ±2 V (200 mV or div to 50 mV or div); ±400 mV (20 mV or div to 2 mV or div); |
| Math | +, -, *, /, FFT |
| FFT | Windows: Henning, Flattop, Rectangular, Bartlett, Blackman; 1024 sample point |
| Bandwidth Limit | 20 MHz |
| Low Frequency Response (-3 db) | ≤10 Hz at BNC |
| DC Gain Accuracy | ±3% for Normal or Average acquisition mode, 100 V or div to 10 mV or div. ±4% for Normal or Average acquisition mode, 5 mV or div to 2 mV or div. |
| DC Measurement Accuracy, Average Acquisition Mode | Measurement Type: Average of ≥16 waveforms with vertical position at zero Accuracy: ± (3% × reading + 0.1 div + 1mV) when 10vmV or div or greater is selected. Measurement Type: Average of ≥16 waveforms with vertical position not at zero Accuracy: ± [3% × (reading + vertical position) + 1% of vertical position + 0.2 div]. |
