Overview

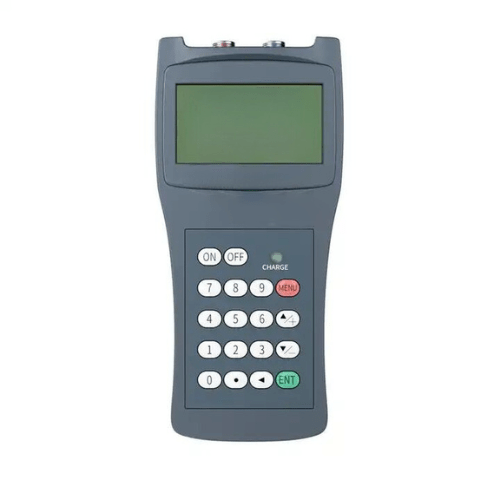

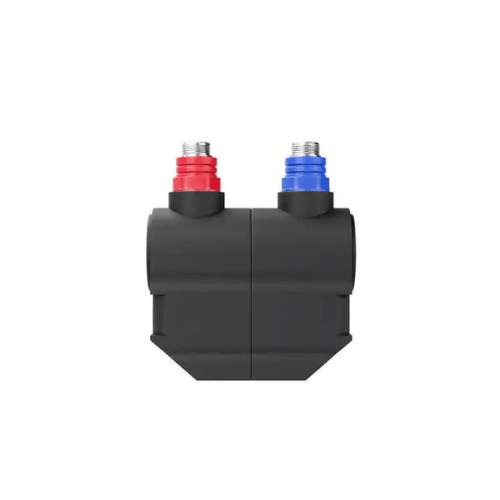

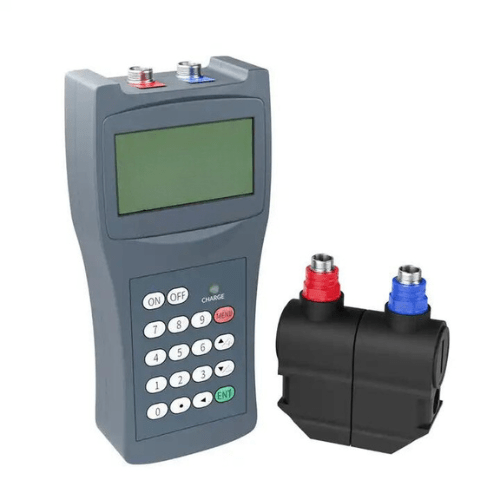

Enviro Test Construct Handheld Clamp Ultrasonic Flow Meter achieves non-contact measurement of liquid flow rate. Install the sensor on the outer wall of the pipeline to complete Measurement of flow rate. It has the characteristics of small size, convenient carrying, and accurate measurement.
Features
- Flow instruments for inspection
- Accuracy 1 %
- Measuring diameter DN50-DN6000
- LCD display with rich information
- 86 °F to 230 °F (30 to 110 °C) fluid measurable
- RS-232 output
- Power supply: built-in lithium battery, charging voltage AC220 V
Technical Specification
| Temperature | 86 °F to 320 °F (30 to 160 °C) |
| Turbidity | 10000 ppm with low bubble content |
| Current Speed | 0 to ± 10 m/s |
| Temperature | host：-20 to 6 trc, flow sensor：-30 to 160 P |
| Weight | 0.89 lb (390 g) |
