Overview
Enviro Test Construct hand-held infrared thermometer for surface temperature of object the infrared temperature sensor can calculate the surface temperature of the object by measuring the infrared radiation intensity emitted by the target without contacting the target. Non-contact temperature measurement is the biggest advantage of infrared temperature sensor, which allows users to easily measure targets that are difficult to approach or move.
Features

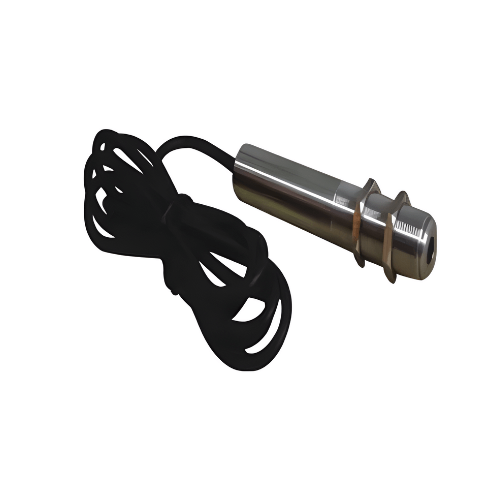

- The infrared temperature sensor includes sensor
- Optical system and electronic circuit integrated in the stainless-steel shell
- Mounting bracket
- Adjustable mounting bracket
- Purging protective sleeve
Technical Specifications
| Protection Grade | IP65 |
| Relative Humidity | 10% to 95% (non-condensing) |
| Material | Stainless Steel |
| Cable Length | 200 cm (2 m) (standard), customizable for special specs |
| Working Power Supply | 24 VDC or 3.3 VDC or 12 VDC |
| Maximum Current | 50 mA |
| Horizontal Resolution | 480 tvl |
| Output Signal | 4 mA to 20 mA linear or 0 V to 5 V linear |
| Spectral Range | 8 µm to 14 µm |
| Temperature Measurement Accuracy | ±1% of measured value or ±1.8 ºF (±1 ºC) (greater) |
| Repetition Accuracy | ±0.5% of measured value or ±1.8 ºF (±1 ºC) (greater) |
| Ambient Temperature | 32 ºF to 140 ºF (0 ºC to 60 ºC) |
| Storage Temperature | 68 ºF to 176 ºF (20 ºC to 80 ºC) |
