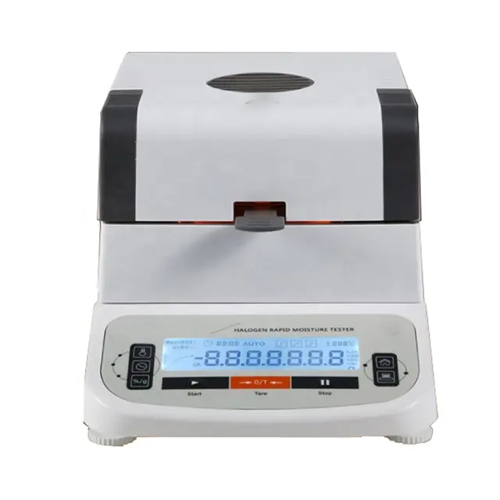

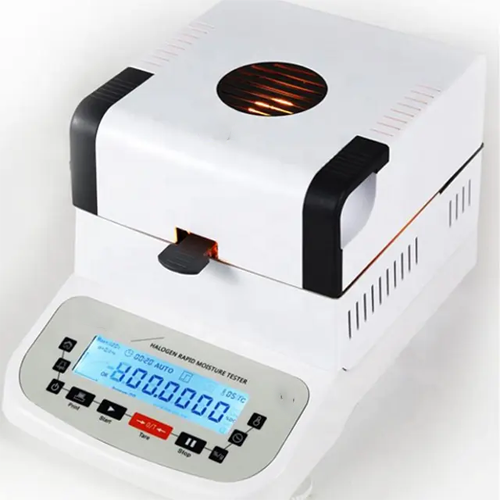

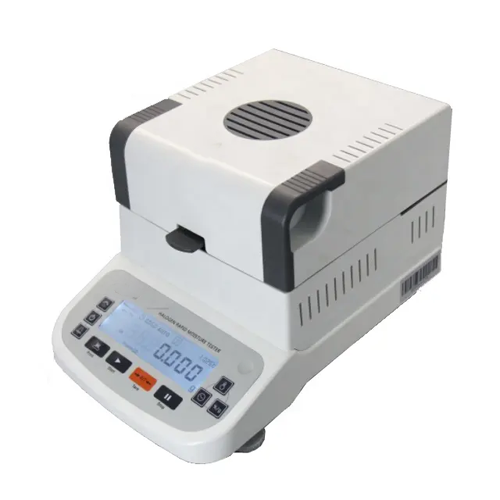

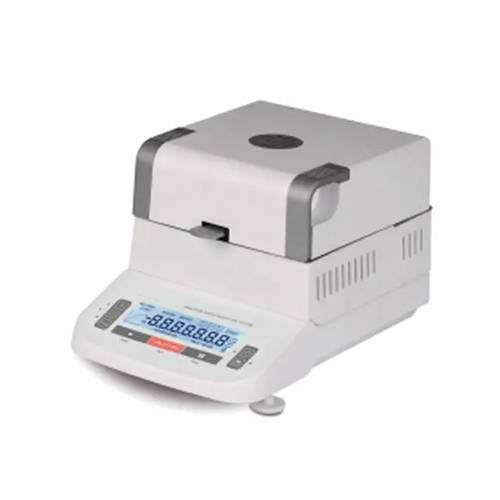

Overview
Enviro Test Construct Halogen Moisture Analyzer is a kind of plastic product that has been produced, dried and reprocessed.The drying effect is liable to be affected by water vapour as it leaks directly into the air.The content of water in the resin directly affects the quality of the resin products.Excessive moisture content of the resin is easy to cause slight changes in the properties of the resin, which can easily cause deterioration of the resin.
Features

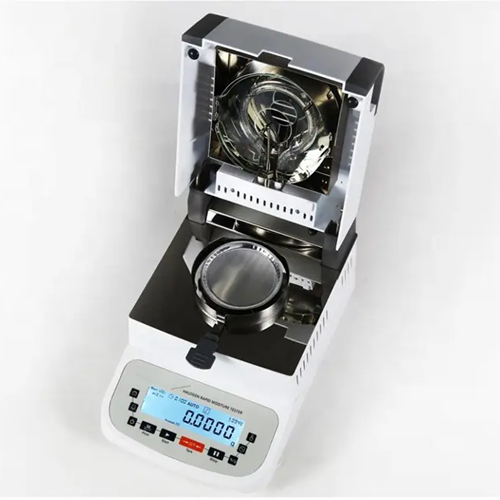

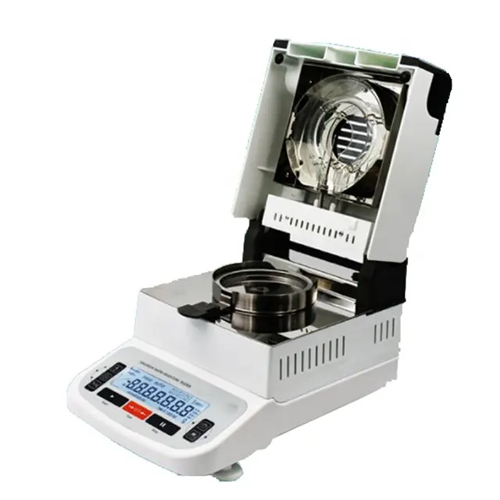

- Annular halogen lamp for rapid material heating
- Stable electromagnetic weighing sensor for accurate results
- Elegant, cost-effective design; and printer connectivity for data
- Even heating via temperature-controlled system for precise outcomes
- Automatic, user-friendly operation with alarm reminders and efficiency
Technical specifications
| Max capacity | 0.26 lb (120 g) | |||
| Capacity Readability (g) | 0.26 lb to 1.10 x 10^(-5) lb (120 g to 0.005 g) | 0.26 lb to 2.20 x 10^(-6) lb (120 g to 0.001 g) | 0.26 lb to 2.20 x 10^(-7) lb (120 g to 0.0001 g) | |
| Repeatability (Standard Error) | >0.02 lb (>10 g) | ±0.01% | ±0.001% | |
| >0.004 lb (>2 g) | ±0.05% | ±0.005% | ||
| Operational Temperature Range | 55.4 °F to 77 °F (13 ℃ to 25 ℃) | |||
| Calibration Way | Temperature calibration, External weights calibration | Temperature calibration, Internal weights calibration | ||
| Pan Diameter (mm) | 3.54 in (90 mm) | |||
| Preheat Time | 20 min to 30 min | |||
| Baud Rate Options | 300, 600, 1200, 2400, 4800, 9600 | |||
| Display | LCD liquid crystal display | LCD liquid crystal display | ||
| Heating Temperature Range | 140 °F to 392 °F (60 ℃ to 200 ℃) | |||
| Drying Process | Standard heating, Step heating, Weight-lost heating | |||
| Moisture Display Mode | Relative Moisture | |||
| Stop Way | Automatic stop, Manual stop, Timing stop | |||
| Setting Time | 0 min to 99 min, interval 1 min | |||
| External Dimension | 12.20 in x 8.07 in x 7.87 in (310 mm x 205 mm x 200 mm) | |||
