Overview

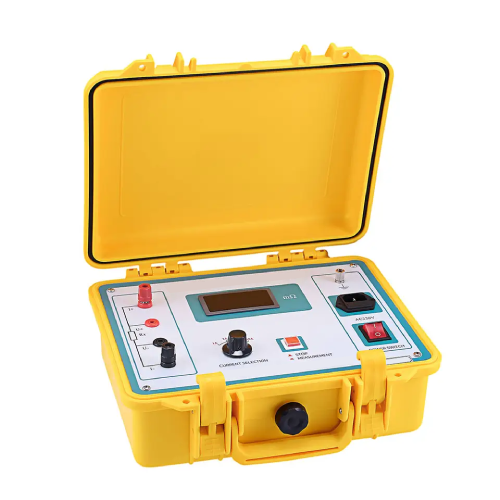

Enviro Test Construct Ground Conduction Continuity Tester provides that the electrical conductivity should use special instruments to measure. The instrument resolution is 1mΩ; accuracy is not less than 1.0 class. Based on this standard, our company designed this high degree of automation and portable tester. It is specially used to test the electrical integrity of earthing device; its technical specification has reached or exceeded the relevant standards. The instrument is characterized by simple operation, high accuracy, fast test speed, good reproducibility, and intuitive readings. It is an ideal special instrument that meets the requirements of regulations and standard.
Features
- Latest power tech: 10 A continuous output, precise results
- Strong anti-interference: LCD shows stable data even with ±1 error
- Long service life: Resists temperature impact, military connectors for vibration resistance

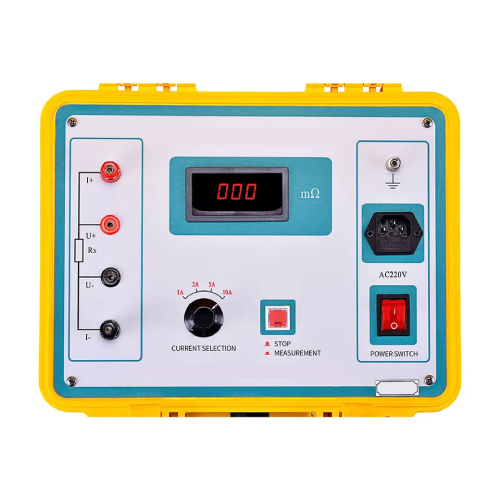

- Simple operation: Press “test” for results, LCD with backlight for easy reading
- Convenience: Compact, lightweight, shock-resistant design
Technical Specifications
| Measurement Range | 1 mΩ to 1999 mΩ |
| Resolution | 1 mΩ (0.001 Ω) |
| Test Current | DC 1A, 2A, 5A, 10A (Four fixed current input selections) |
| Accuracy | ±(0.5% + 2d) |
| Measuring Radius | 50 meters |
| Operation Mode | Continuous |
| Temperature | -10 °F (-23 °C) to 40 °F (4 °C) |
| Humidity | ≤80% RH |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Display | LCD backlight display |
| Weight | 11.02 lb (5 kg) (Accessories excluded) |
| Dimensions | 11.81 in x 10.63 in x 7.87 in (300 mm x 270 mm x 200 mm) |
