Overview

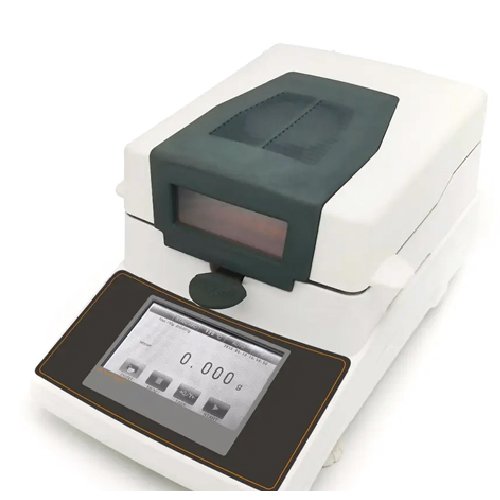

Enviro Test Construct Grains Coal Moisture Meter is a portable and easy-to-use instrument that provides accurate and reliable measurements of the moisture content of grains and coal. It is based on the principle of electrical conductivity and has a large and easy-to-read LCD display.
Features
- Portable
- Easy to use
- Accurate
- Reliable
- Based on the principle of electrical conductivity
- Large and easy-to-read LCD display
- Built-in temperature sensor
Technical Specifications
| Range | 0.24 lb (110 g) |
| Readability | 0.001 g |
| Operating Temp | 41 °F to 95 °F (5 °C to 35 °C) |
| Pan Size | 3.54 in (90 mm) |

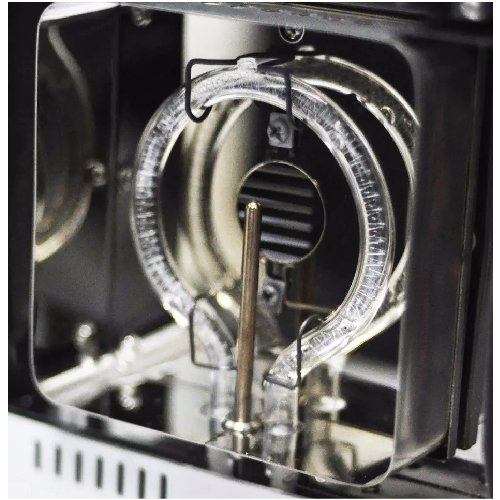

| Heat Source | Halogen Lamp |
| Temp Sensor | PT 100 |
| Temp. Range | 104 °F to 390.2 °F (40 °C to 199 °C) |
| Temp Step | 33.8 °F (1 °C) |
| Moisture Range | 0.00% to 100.00% |
| Moisture Readability | 0.01% |
| Dry Residual Range | 100.00% to 0.00% |
| Dry Residual Readability | 0.01% |
| Temp Setting | 104 °F to 390.2 °F (40 °C to 199 °C) By 33.8 °F (1 °C) Step |
| Time Setting | 1 to 99 min by 10 S |
| Number Of Storage | 15 |
| Number Of History | 15 |
| Heater | 220 V+15% 50 HZ 400 W |
| Balance | Input: 220 V 50 HZ Output:9 V |
| The Chamber Height | 0.86 in (22 mm) |
| Display | 5 |
| Calibration | External Calibration |

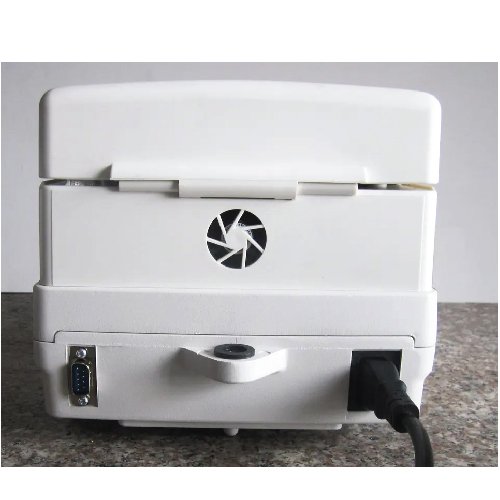

| Interface | RS232 |
| Host Dimension | 14.17 in x 19.29 in x 13.7 in (360 mm x 490 mm x 350 mm) |
| Weight | 16.53 lb (7.5 kg) |
