Overview

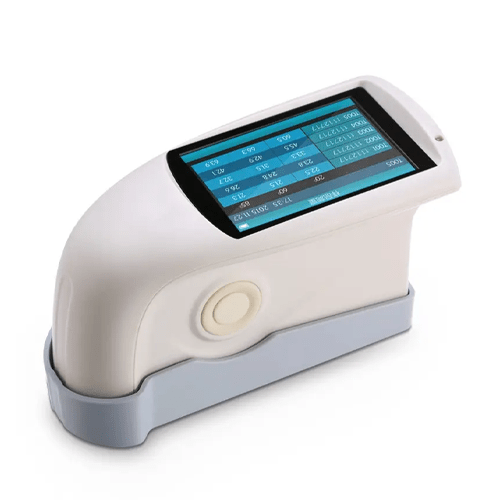

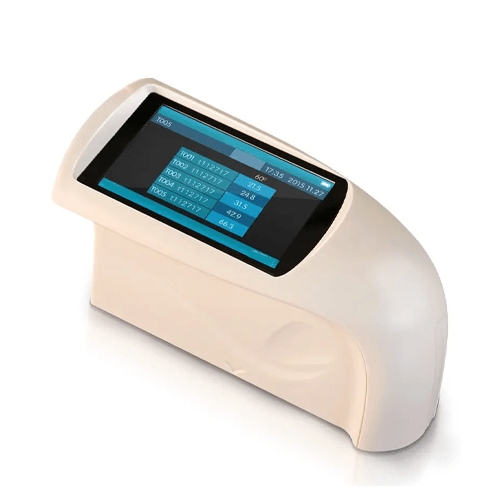

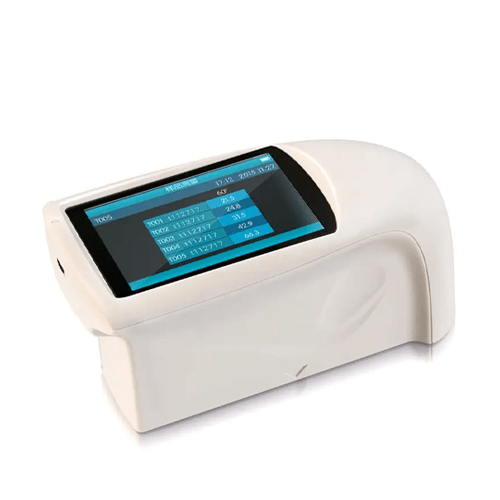

Enviro Test Construct gloss tester meter is widely used to test glossiness in these industries, such as automobile, paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc.
Features
- Concise appearance, feel good
- Display 5 sets of measurement data, good for comparison
- Built-in lithium ion rechargeable battery
- Basic model measurement can meet basic glossiness testing requirements
- Connect to PC, more extend functions
- One button for all angles measurement at the same location
- Comply with international standards
- Stable performance, easy to read data
Technical Description
| Measuring Angle | 20°/60°/85° |
| Measuring Area | 20° 0.39 in x 0.39 in (10 mm x 10 mm) 60° 0.35 in x 0.59 in (9 mm x 15 mm) 85° 0.19 in x 1.4 in (5 mm x 36 mm) |
| Measuring Range | 20° 0 GU to 1000 GU 60° 0 GU to 1000 GU 85° 0 GU to 160 GU |
| Division Value | 0.1 GU |
| Measurement Range | 0 GU to 10 GU, 10 GU to 100 GU, 100 GU to 300 GU |
| Repeatability Reproducibility | ± 0.1 GU, ± 0.2 GU, ± 0.2% GU, ± 0.2 GU, ± 0.5 GU, ± 0.5% GU |
| Chromaticity Corresponding | Corresponding with CIE 1931(2°) under CIE C light source |
| Errors | ±1.5, ± 1.5% |
| Measuring Time | 0.5 s |
| Battery | 3.7 V, 3200 mAh Li-ion Battery, >10000 times (within 8 hrs) |
| Interface | USB / RS-232 |
| Storage | Basic mode: 1000 |
| Software | GQC6 Quality Control Software with QC report printing functions and more extended functions. |
| Operation Temperature | 32 °F to 104 °F (0 °C to 40 ℃) |
| Storage Temperature | 4 °F to 122 °F (-20 °C to 50 ℃) |
| Humidity | <85% relative humidity, no condensation |
| Dimension | 6.3 in x 2.95 in x 3.5 in (160 mm x 75 mm x 90 mm) |
| Weight | 0.8 lb (350 g) |
