Overview

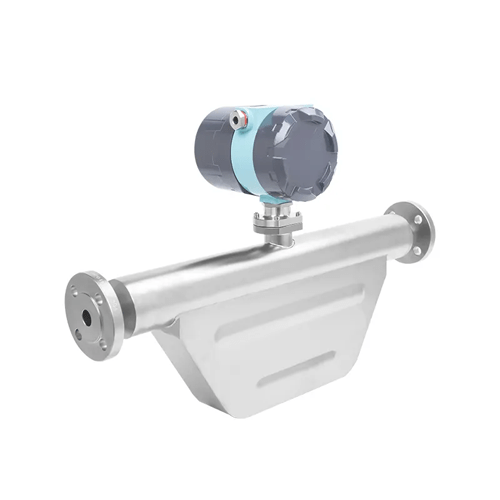

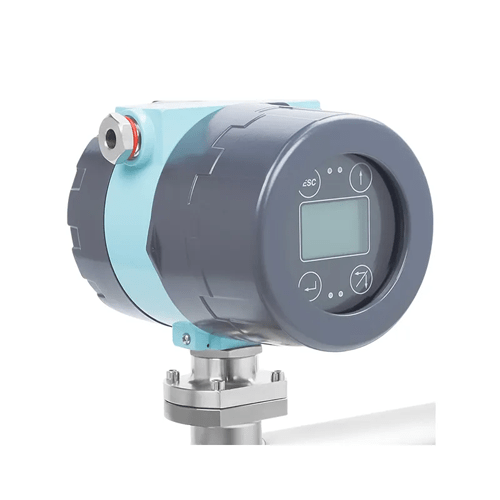

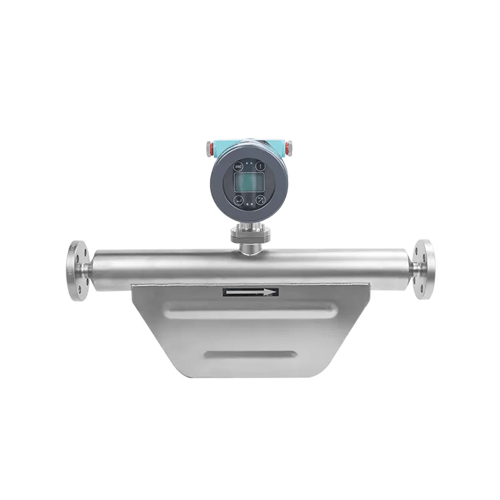

Enviro Test Construct gas mass flow meters use pure digital adaptive drive core processor, full closed loop DSP signal processing, special structure, high stability, strong shock resistance, fast response time, high precision (0.1% to 0.2%), Small pressure loss, synchronous, multi-parameter measurement (including: mass flow, density, temperature, percentage content), wide application range, low installation requirements, (not high requirements for the front and rear straight pipe sections of the instrument), low maintenance rate, etc.
Technical Specification
| Measuring tube material | 316 L |
| Pressure Level | Up to 14503.8 PSI (100 MPa) |
| medium temperature | up to 662 °F (350 °C) |
| measurement accuracy | 0.1 / 0.15 / 0.2 / 0.5 |
| Use ambient temperature | -41.8 °F to 176 °F (-41 ℃ to 80 ℃) |
| Density measurement accuracy | 0.001 / 0.002 |
| Repeatability | ≤±0.05% |
| power supply | 24 V DC 220 V AC |
| output signal | RS 485 / 4 mA to 20 mA |
| Protection class | IP 67 |
