Overview

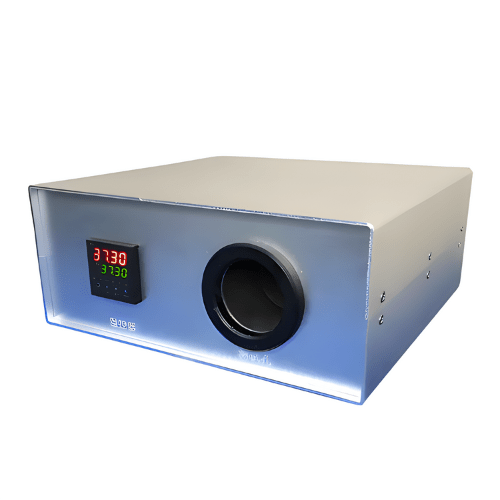

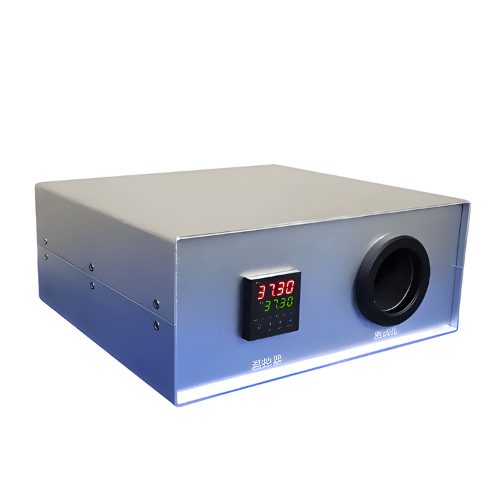

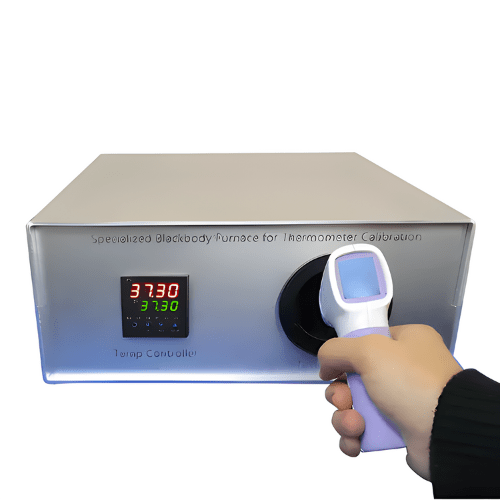

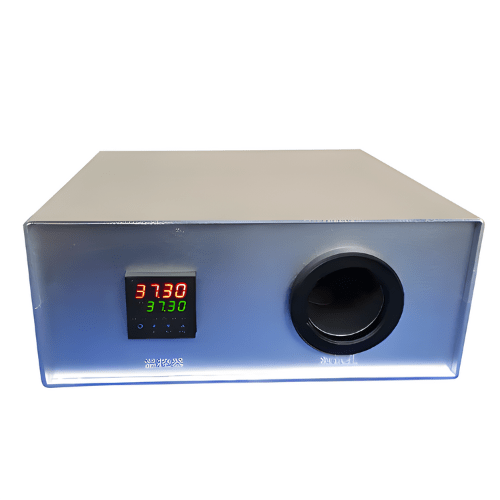

Enviro Test Construct furnace of specialized temperature of calibrator is a controlled source of thermal radiation used to calibrate infrared radiation thermometers (pyrometers), thermal imagers and radiation heat flux gauges and radiometers. It is our NEWGOER R&D and manufactured product which is specially used in calibration for Infra-red ear temperature gun, forehead temperature gun and medical thermometer. It can also be used for the calibration of infrared body surface screening instrument.
Features
- cavity mouth radiation evenly distributed with the
- Novel design, simple operation
- Adapt automatic temperature control method, safe and reliable
- fast temperature rise and good temperature
- Easy to operate, small size and light weight, easy to
- Suitable not only for laboratory calibration, but also for field
- Display the measured value and parameter setting with double row
- New technology, high precision, multi – function
Technical Specifications
| Power | 220 V ±10% 50 HZ |
| Emissivity | ≥0.99 |
| Temp Resolution | 32.018 °F (0.01 ℃) |
| Temp Resolution | 32.018 °F (0.01 ℃) |
| Temp Uniformity | 31.82 °F to 32.18 °F (±0.1 C°) |
| Measure Range | 86 °F to 122 °F (30 °C to 50 °C) |
| Cavity Diameter | 2.20 in (Φ56 mm) |
| Cavity Depth | 1.96 in (50 mm) |
| Weight | 6.61 lb (Approx 3.0 Kg) |
