Overview

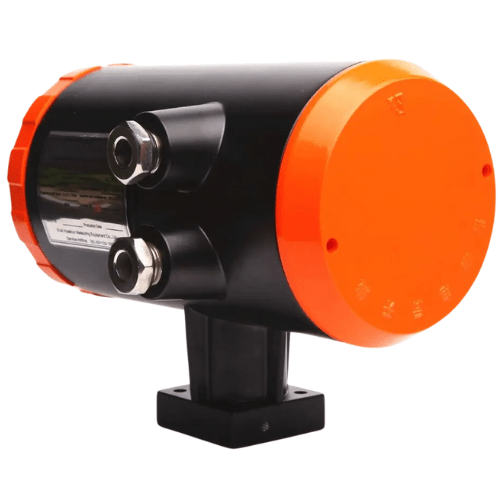

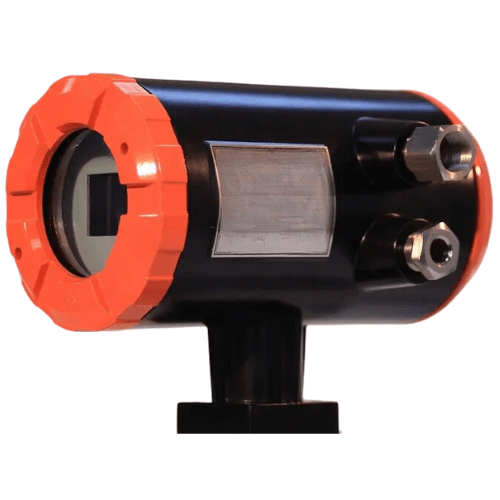

Enviro Test Construct external ultrasonic liquid level meter is a device used to measure the level of liquid in a container or tank using ultrasonic technology. This type of level meter is designed to be mounted externally on the wall of the container, without the need for direct contact with the liquid. It operates by emitting ultrasonic pulses that travel through the air and reflect off the surface of the liquid, allowing the device to calculate the distance to the liquid and determine its level.
Features
- Non-Contact Measurement
- High Accuracy
- Easy Installation
- Remote Monitoring
- Versatility
- Strong anti-interference capability
Technical Specifications
| Measuring range | 9.84 ft (3 m), 16.40 ft (5 m), 32.80 ft (10 m), 65.61 ft (20 m), 98.42 ft (30 m) |
| Display resolution | 0.03 in (1 mm) |
| Short time repetition rate | 0.03 in (1 mm) |
| Measuring error | 1% to 1% (Excessive wall thickness and instability of pressure and temperature may affect measurement precision.) |
| Span shift | ±10 m |
| Current output | 4 mA to 20 mA, Max load 750 Ω |
| Communication interface | RS 485, IrDA |
| Ambient temperature for operation panel | -58 ℉ to 158 ℉) -50℃ to 70℃ |
| Ambient temperature for ultrasonic probe | -58 ℉ to 248 ℉ (-50 ℃ to 120 ℃) (Probe with wider temperature range is available） |
| Ambient humidity | 15% to 100% RH |
| Explosion proof mark | ExdⅡ CT 6 |
| Housing ingress protection | IP 67 |

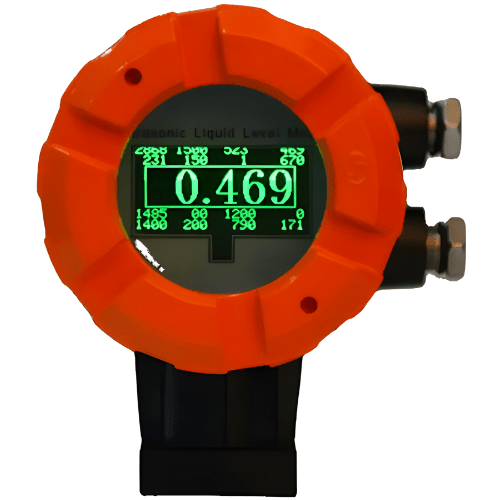

| Liquid level display | 6 Digits OLED display (Unit: m) |
