Overview

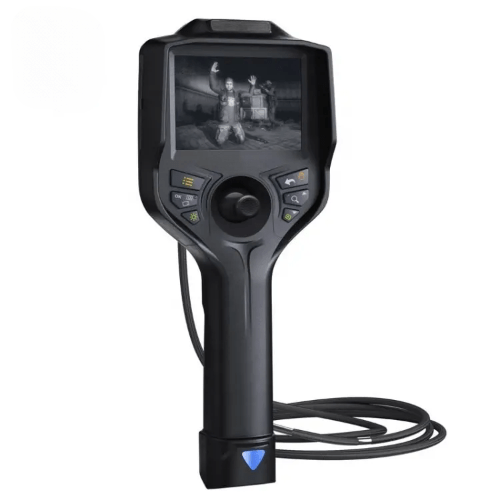

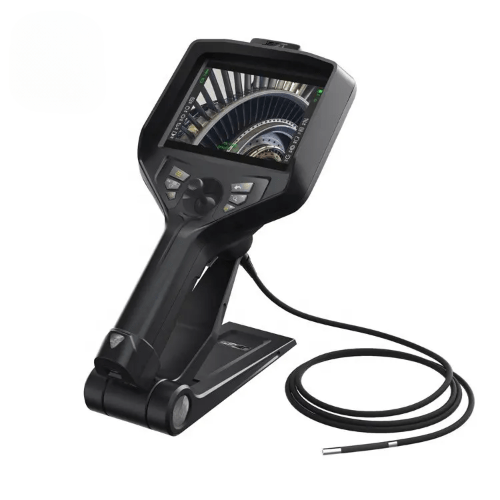

Enviro Test Construct endoscope borescope inspection camera are a branch of non-destructive testing and a dedicated detection technology. Suitable for inspection and observation of high temperature, toxic, nuclear radiation and places that are invisible to the human eye (eg automotive assembly, automotive casting, engines, pipes, mechanical parts, pressure vessels, power systems, wind power, chemical, mechanical equipment), railway locomotives, etc. This product can achieve non-destructive testing without disassembly or destruction of assembly and equipment stop operation, can greatly improve the detection efficiency and equipment safety performance.
Technical Specification
| Camera | 1,000,000 pixels |
| DOF | 0.19 in x 1.96 in (5 mm to 50 mm) and 0.03 in x 3.93 in (1 mm to 100 mm) and 0.39 in x 3.93 in (10 mm to 100 mm) and 0.78 in x 3.93 in (20 mm to 120 mm) |
| FOV | 80°/120° |
| Light Source | LED (optional: optic fiber) |
| Illuminance | It can be up to 20000 Lx |
| Tube Length | 39.37 in to 78.74 in (1.0 m to 2.0 m) (customized for other length) |
| Protecting Device of Durability | buffer protection device between tube and handle |

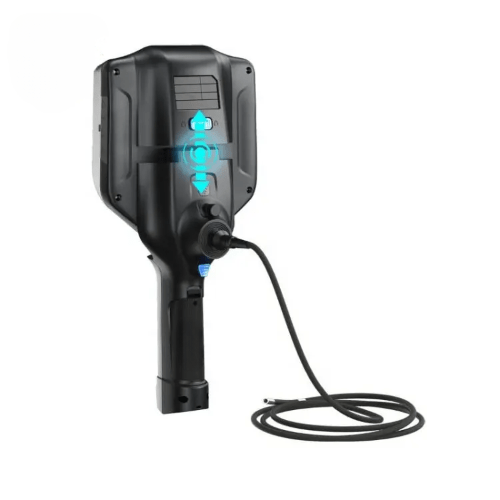

| Articulation | 360° joystick control |
| Bending Angle | Maximum: 190°, Minimum: 100° |
| Probe Positioning | Damping positioning (optional: articulation lock device) |
| Display | 3.5 in (88.9 mm) TFT LCD, (optional: 5.7 in display) |
| Image Resolution | 1280 pixels × 720 pixels |
| Outer Case Material | Anti-fall engineering alloy material |
| IP Level | Probe/tube: IP 67 |
| Temperature Indication | High temperature alarm 5.7 in monitor available |
| Structure | Hand-held integrated design |
| Image/Video Format | JPEG/MOV |
| Data Port | video output, Micro USB port |
| Working Time | ≥8 hrs |
| Battery Capacity | 3.7 V, 3200 mAh × 2 |
| Power Charge | DC 5 V, maximum current: 1 A |

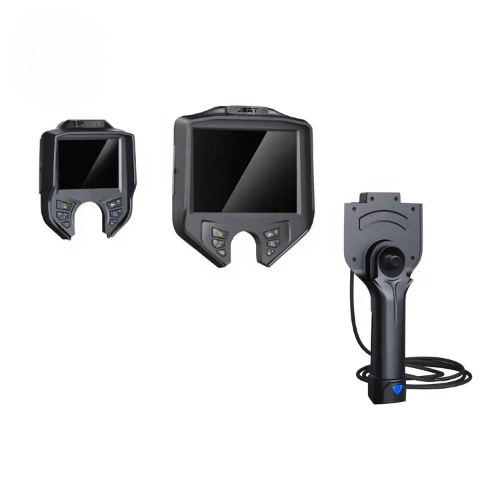

| Compatibility | Interchangeable monitor and tube with different diameters |
| Storage | Standard TF card: 16 GB, Maximum: 32 GB |

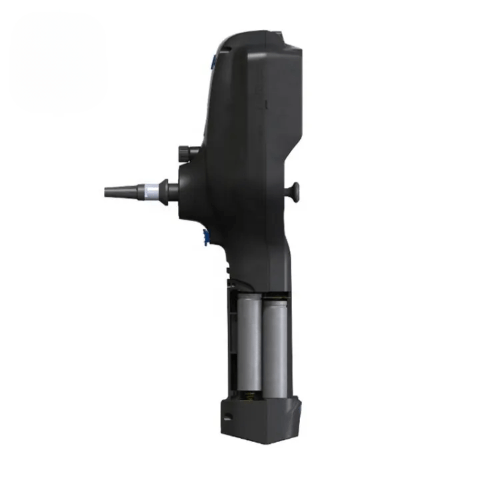

| Power Supply | Detachable lithium batteries |

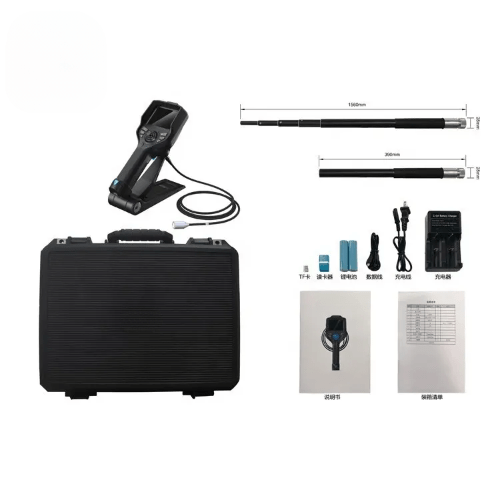

| Standard Configuration | Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual |
| Probe Diameter | 113 in (2.8 mm) |
| Weight | 1.21 in to 1.76 lb (550 g to 800 g) |
