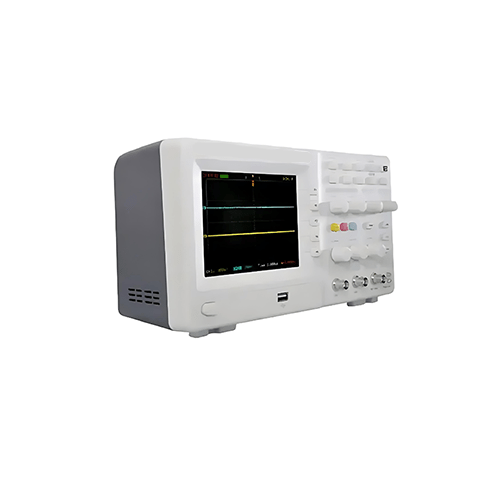

Enviro Test Construct Electronic Measuring Digital Oscilloscope

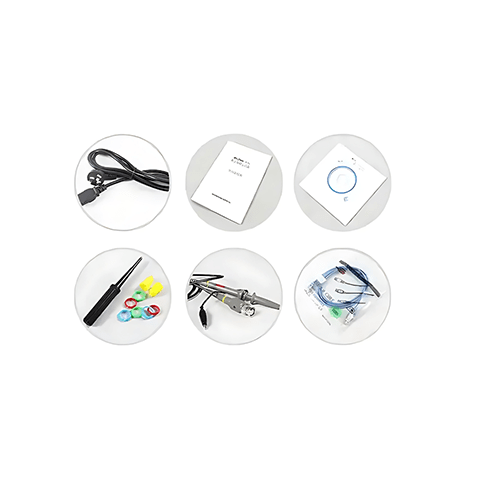

Enviro Test Construct Electronic Measuring Digital Oscilloscope - Image 2

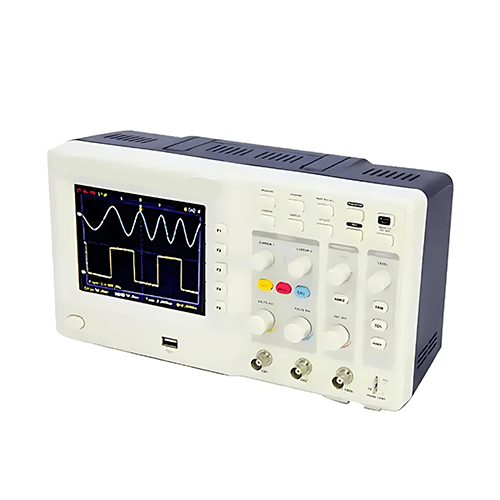

Enviro Test Construct Electronic Measuring Digital Oscilloscope - Image 3

Enviro Test Construct Electronic Measuring Digital Oscilloscope

This Electronic Measuring Oscilloscope has a real-time sample rate of 1 GSa/s, an equivalent sample rate of 50 GSa/s, and a phase difference of ±3 degrees.

SKU: ETCDOS-170 Category:

Features

  • 1 GS/s real-time sampling rate
  • Trigger-type matching
  • Supports Y-T and X-Y at the same time
  • 320 pixels x 240 pixels resolution



Technical Specification

Real-Time Sample Rate1 GSa/s
Equivalent Sample Rate50 GSa/s
Input impedance1 M Ω or 12 pF
Horizontal Accuracy±0.01%
Vertical Sensitivity2 mV/div to 5 V/div
Phase Difference±3 degrees
Vertical Resolution8 bits
Display Resolution320 pixels x 240 pixels
Dimension12.04 in x 5.27 in x 4.80 in (306 mm x 134 mm x 122 mm)
Weight4.85 lb (2.2 kg)
