Overview

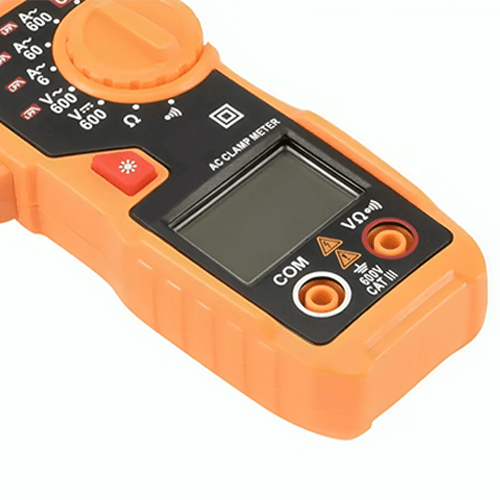

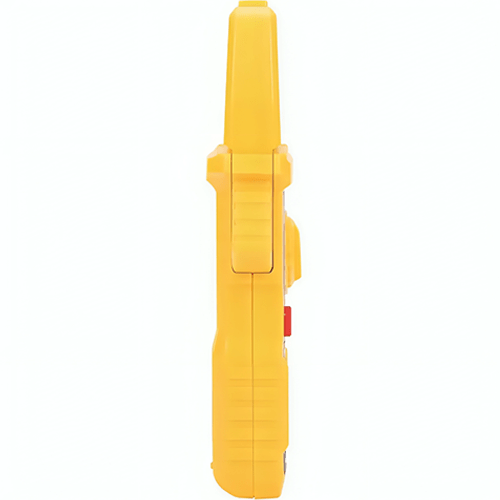

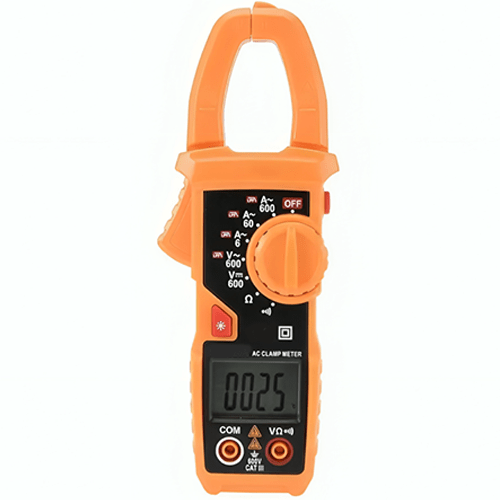

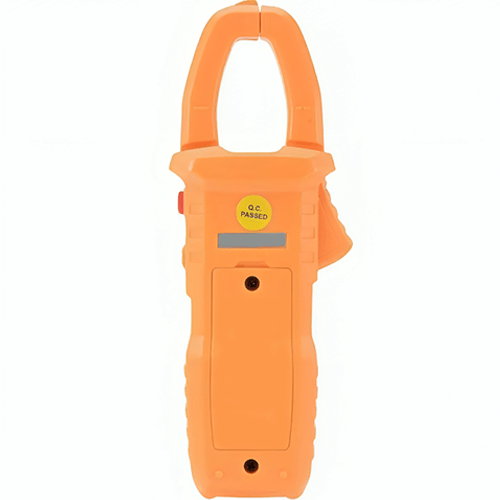

Enviro Test Construct digital voltage ohmmeter can measure AC or DC voltage, AC current, resistance and test continuity. LCD display with backlight, convenient to operate and read. Data hold function, low battery indication, auto power off. Overload protection for the whole measurement range.
Technical Specifications
| Work height | Maximum 1.2 mi (2000 m) |
| Display | LCD |
| Maximum display value | 6000 digits |
| Over range indication | “OL” or “-OL” |
| Sampling time | About 3 times per second |
| Automatic power off time | 10 minutes |
| Temperature coefficient | <0.1 x |
| Working temperature | 64.4 °F to 82.4 °F (18 ℃ to 28 ℃) |
| Storage temperature | 14 °F to 122 °F (-10 ℃ to 50 ℃) |
| Maximum input current | 600 A AC current |
| Maximum input voltage | 600 V DC |
| Frequency range | 50 Hz or 60 Hz |
| Overload protection | 600 V DC or AC |
| Resistance | 0 KΩ to 60 KΩ |
| Continuity | <30 Ω |
| Power supply | 2 x 1.5 V AAA batteries (not included) |
| Size | 7.4 in x 2.7 in x 1.5 in (189 mm x 70 mm x 39 mm) |
