Overview

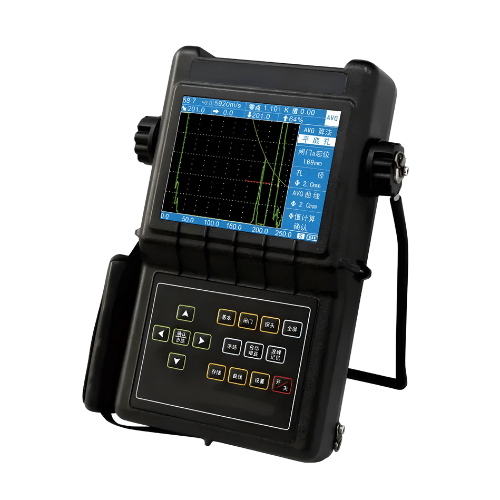

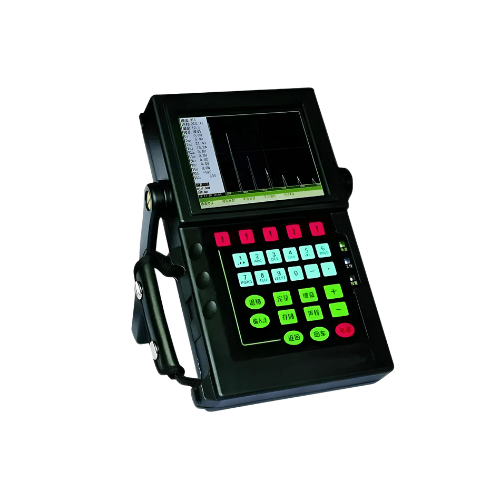

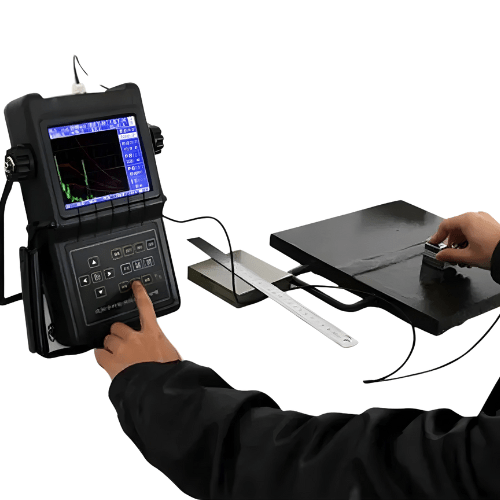

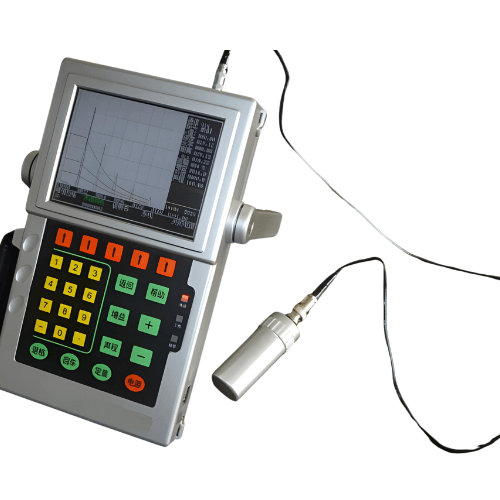

Enviro Test Construct Digital Ultrasonic Flaw Detector can detect internal defects (such as cracks, inclusions, porosity, etc.) and can automatically locate, evaluate and diagnose.
Technical Specifications
| Gain Range | 0 dB to 120 dB, 0.1 dB, 2.0 dB, 6.0 dB Stepping |
| Frequency Range | 0.4 MHz to 20.0 MHz |
| Detection Range | 0.02 in to 236.22 in (0.5 mm to 6000 mm) |
| Sensitivity Margin | >62 dB |
| Resolution | >40 dB |
| Dynamic Range | >32 dB |
| CUI Linear | <3% |
| Pusle | Variable pulse generator |
| Work Mode | Single or Dual Penetrate |
| Damping | 50 Ω or 100 Ω or 400 Ω automatically match |
| Detection Method | Half-wave or Radiofrequency |
