Overview

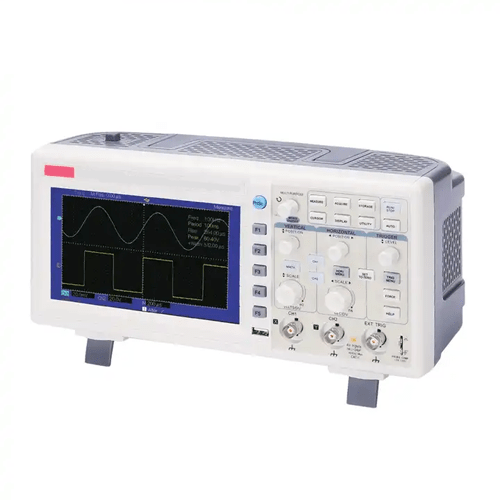

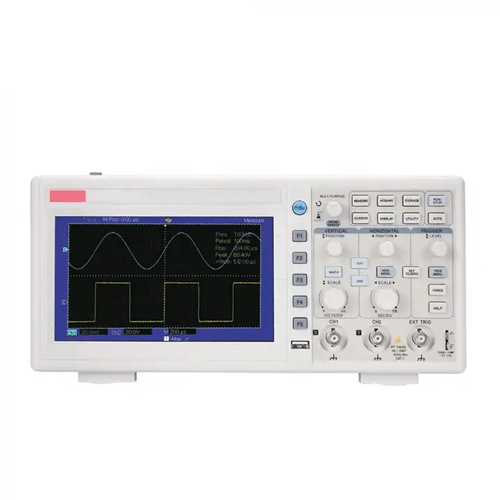

Enviro Test Construct digital storage channel oscilloscope Serial data analysis, jitter analysis, data storage device testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance.
Features
- The new interface styles
- Multilingual menu available
- USB drive system software upgrade
- Unique waveform record and replay function
- Automatic measurement of 32 waveform parameters
- Storage of waveform setups and interface waveform
- setup reproduction
- 2 channels, wide vertical range: 1 mV or div to 20 V or div2
- 7 in (17.7 cm) widescreen LCD display
- Supports plug-and-play USB storage device. Communication
- remote control of computer through the USB device
Technical Specification
| Channels | 2 |
| Bandwidth | 100 MHz |
| Sample Rate | 1 GS/s |
| Rise Time | ≤3.5 ns |
| Memory Depth | 25 kpts |
| Waveform Acquisition Rate | ≥2000 wfms/s |
| Vertical Sensitivity (V or div) | 1 mV or div to 20 V or div |
| Time base Range (s or div) | 2 ns or div to 50 s or div |
| Storage | Setup, Wave, Bitmap |
| Trigger Modes | Edge, Pluse, Alternate |
| Interface | USB OTG |
| Power | 100 VAC to 240 VAC, 45 Hz to 440 Hz |
| Product Color | White and grey |
| Standard Carton Measurement | 17.7 in x 16.5 in x 11 in (450 mm× 420 mm × 280 mm) |
| Optional Accessories | LA Module |
| Display | 7 in (17.7 cm) 64 K Color TFT LCD, 800 pixels × 480 pixels |
| Size | 12 in x 5.7 in x 4.8 in (306 mm × 147 mm × 122 mm) |
| Net Weight | 4.8 lb (2.2 kg) |
