Overview

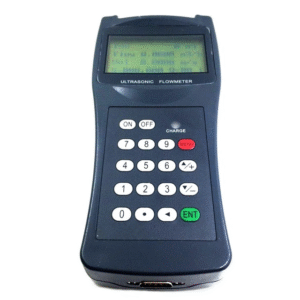

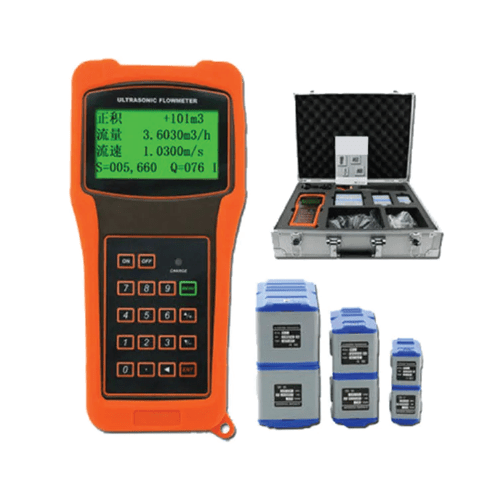

Enviro Test Construct digital portable ultrasonic flow meter handheld ultrasonic flow meters enable non-contact measurement of liquid flow. The sensor is installed on the outer wall of the pipe to complete the measurement of the flow. It has the characteristics of small size, convenient carrying and accurate measurement.
Features
- Highly accurate, ±1%
- Liquid need not be conductive.
- One unit can measure flow in different diameter sizes (DN15-DN6000)
- Can be fitted in complicated pipelines since flow path straightening requirement is minimal
- Small size and easy to carry
- Easy installation and reduced installation time
- No need for short tube shutoff, no pressure loss
- Built-in 32K memory, can store 2000 lines of measurement data
Technical Specification
| Principle | ultrasonic time difference principle |
| Accuracy | ±1% |
| Display | 4 x 8 or 4 x 16, support English and Chinese display |
| Signal output | 1 channel OCT pules output (pulse broadband 6 Ms to 1000ms, default 200ms) |
| Data interface | Interlace RS232 serial interface for flow meter upgrade via PC |
| pipe material | steel, stainless steel,iron,copper,PVC,allowed with lining |
| Species | water, sea water, industrial wastewater, beer pectising homogeneous liquid capable of conducting ultrasound |
| Temperature | 86 °F to 320 °F (30 °C to 160 ℃) |
| Turbidity | 10000 ppm and small bubble content |
| Velocity | 0 m/s to 10 m/s |
| Humidity | 85% Hasenour |
