Overview

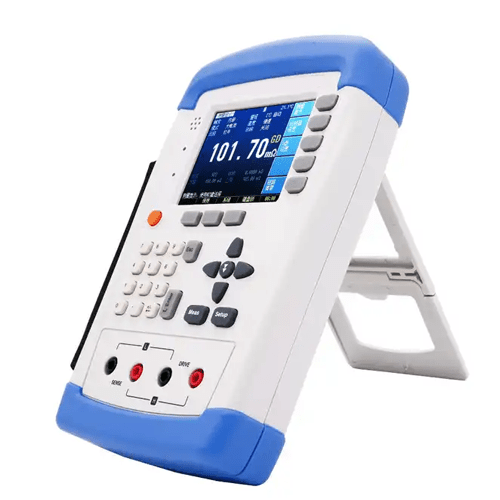

Enviro Test Construct digital micro ohmmeter. This instrument is indeed versatile, capable of measuring a wide range of resistances in various applications. With its high precision, wide range, and real-time measurement capabilities, it is suitable for testing different types of resistors, switch contact resistances, connector plug resistances, relay coil package and contact resistances, transformer, inductor, motor, deflection coil winding resistance, conductor resistance, metal riveting resistors for vehicles and aircraft, as well as printed circuit board lines and hole resistances. The meter’s ability to handle a broad spectrum of resistance values and its accuracy, even at high testing speeds, make it a valuable tool for professionals working in fields where precise resistance measurements are essential.
Technical specification
| Display Type | Digital Only |
| Measuring Range | 10 μ Ω to 20 MΩ |
| Testing Voltage | 198 V AC to 240 V AC or 110 V |
| Accuracy Class | 0.05% |
| Operating Temperature | 32 °F to 131 °F (0 °C to 55 °C) |
| Parameter | DC Resistance |
| Measurement Range | 10 μ Ω to 20 MΩ |
| Range | Automatic, manual, nominal with 10 ranges |
| Result Display | ABS, PER, SEQ compare way |
| Adjustment | Short-circuit Zero-Adjust for each range |
| Power Adaptor | Input: 100 V to 240 V to 50 Hz or 60 Hz 0.35 A Output: 9 V 1 A DC |
| Battery Parameters | 8.4 V, Li, 2200 mAh rechargeable battery |
| Charging Time | Single continuous charging time: Max 300 Min |
| dimension | 11.81 in x 11.81 in x 4.33 in (300 mm x 300 mm x 110 mm) |
| weight | 1.1 lb (500 g) |
