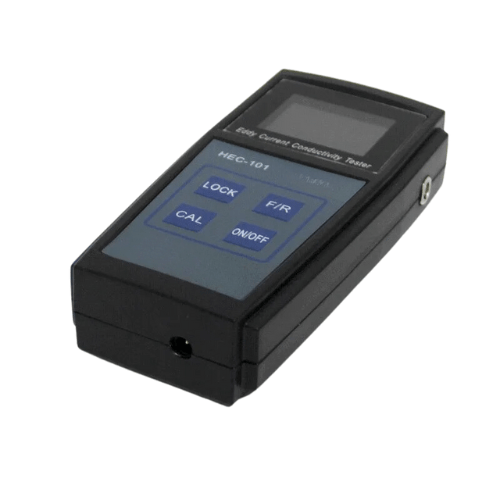

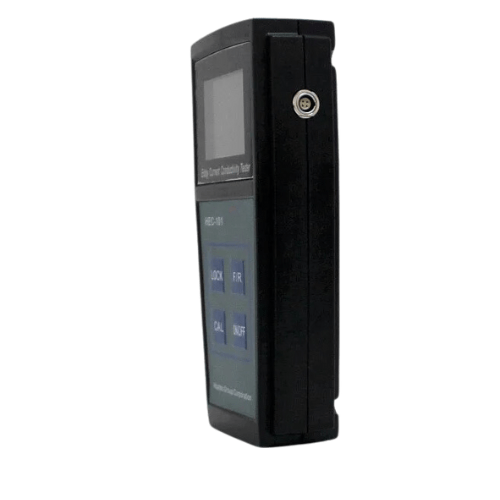

Overview
Enviro Test Construct Digital Current Conductivity Meter are designed for quick & convenient measurement of material property, such as material separate, quality control, material state check and so on. The products use the electromagnetism testing principle, can testing objects focus on non-ferromagnetic materials. The testing data can be read in two kinds of unit (%IACS and MS/m). The products can test electrical conductivity and resistivity at the same time, and they include the intelligent temperature and lift-off compensations, thus can guarantee the testing accuracy of each measurement. The big typeface and the back light illumination designs are advantageous for users to take the testing data even in low light condition. The products use the high property battery to make sure it keeps more running time, and because of their mini size, you could be easy to carry and to grasp hold. The designs of the products are more advantages, such as users can replace the probe in the outdoor, don’t need to return the company to adjust the probe into matching the meter. It can store 1000 measurement data, moreover, users can use USB connect the meter to a PC to create testing report.
Technical Specifications
| Operating Frequency | 60 KHz |
| Display Screen | Monochrome |
| Instrument Case | Anti-intense impact, waterproofing |
| Power Supply | High capacity, high performance lithium polymer battery |
| Measuring Range | 1% IACS to 105% IACS (0.58 MS/m to 61MS/m) |
| Distinguishing Rate | 0.1% IACS |
| Measuring Accuracy | 5 to 40 23% IACS ±0.5% IACS 100% IACS ±8% IACS |
| Temperature Compensation | 5 to 40 |
| Normal Work Environment | |
| Relative Humidity | 0% to 95% |
| Language | Chinese |
| Fitting | Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter |
| Probe Diameter | 0.5 in (12.7 mm) (Applicable to minimum measuring area diameter at 60 KHz is 0.51 in (13 mm)) |
| Operating Temperature | 41°F to 104°F (5 °C to 40 °C) |
| Temperature Compensation | 41 °F to 104 °F (5 °C to 40 °C) |
| Dimensions | 7.08 in × 2.99 in × 1.37 in (180 mm x 76 mm x 35 mm) |
| Weight | 0.66 lb. (300 g) |
