Overview
Enviro Test Construct Digital Conductivity Tester is designed with an eddy detection method. These products may be used for distinguishing, grading and so forth detecting, on conductivity with non-ferromagnetic metal. These are commonly used in the industries of metallurgy, machinery, electric power, aviation, aerospace, nuclear, military, etc.
Features
- Beautiful appearance, easy to carry, and convenient to grasp, making calibration Wide Measuring
- Covers all nonferrous metal materials
- Advanced design ensures reliable operation and precise measurements
- Equipped with built-in memory capable of storing up to 16,000 sets of measured data
- Excellent design includes lift-off compensation, enhancing measurement precision
- Choose between MS/m or %IACS for flexible measurement
- Simultaneously displays measured results, measuring frequency, measuring time
- Designed with back-light illumination for easy reading in low-light conditions
- Offers three language options for user selection
Technical Specifications
| Working Frequency | 60 kHz |
| Measurement Range for Conductivity | 0.51% IACS to 112% IACS, or 0.3 MS/m to 65 MS/m, or resistivity 0.0154 Ω·mm²/m to 3.3333 Ω·mm²/m |
| Resolving Power | 0.01% IACS (when < 51% IACS)0.1% IACS (from 51% IACS to 112% IACS) |
| Measuring Precision | ±1% reading |
| Lift-off Effect Compensation | 0.0039 in (0.1 mm) |
| Function of Auto Compensation | Measured result of conductivity, adjusting to value at 68 °F (20°C) automatically |
| Normal Working Environment | Temperature from 32 °F to 122 °F (0°C to +50°C); Relative humidity from 0% to 95% |
| Display | Medium-size screen, displaying conductivity, frequency, time |
| Power Supply | Equipped with best performance lithium-ion rechargeable battery |
| Sensor | One sensor of diameter 0.55 lb (249.47 g), working frequency 60 kHz |
| Reading Memory | Can store up to 16,000 groups of measured data |
| Communication with PC Machine | RS232 serial interface |
| Shell of Instrument | Impact-resistance, engineering plastic shell, anti-electric-power rubber shell |

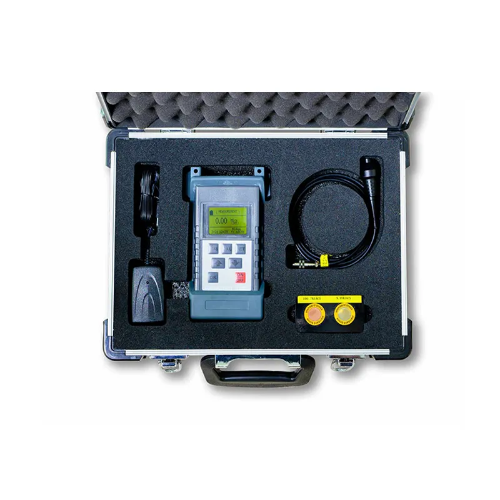

| Package and Protection | High impact-resistance, portable box, includes instrument, sensors, communication cable, operation manual, conductivity standard-blocks, recharger, [U-disk (or optical disk)] |
| Accessories | 2 pieces of standard conductivity blocks (additional blocks available for purchase) |
| Weight of the Host Machine | 0.66 lb (30 g) (including batteries) |
| Dimensions of the Host Machine | 6.6 in x 3.4 in x 1.9 in (170 mm x 88 mm x 50 mm) |
