Overview

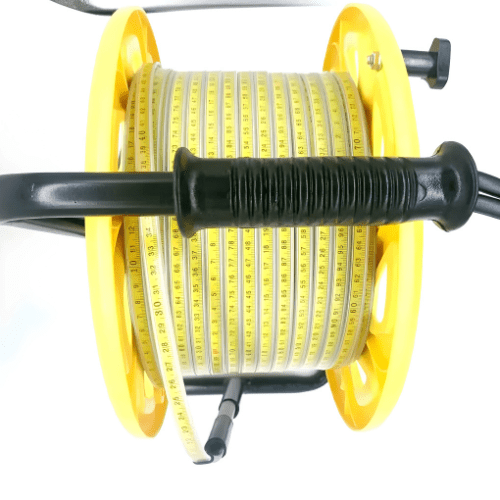

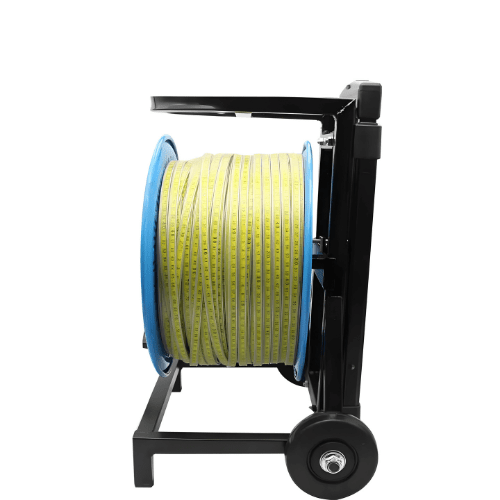

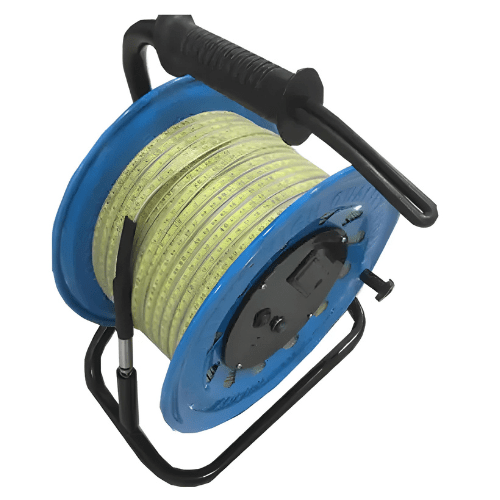

Enviro Test Construct water sounder level meter provides an accurate measurement method of level meter, usually used for the measurement of water level in the drilling holes or water level pipe, particularly suitable for hydropower engineering underground water level or artificially inspection dam observation. This instrument can be used in construction period, but also can be used as the long-term safety monitoring project.
Features
- Accuracy and Precision
- Compatibility
- Versatility
- Alarm Systems
- Hydrology and Water Resource Management
- Environmental Monitoring
Technical Specifications
| Rated Voltage | 300 V |
| Testing Voltage | 2000 V |
| Insulation Resistance | >200 MΩ × km |
| Measurement Signal | LED, buzzer |
| Shell Color | Blue, yellow, black |
| Shell Material | ABS, Metal |
| Measurement Range | 98.42 ft, 164.04 ft, 328.08 ft, 656.16 ft, 984.25 ft, 1312.33 ft, 1640.41 ft (30 m, 50 m, 100 m, 200 m, 300 m, 400 m, 500 m) |
| Battery Power | 9V lithium battery |
| The Response Time For Output | ≤1 MS |
| Measurement Error | 0.01 in (≤±0.5 mm) |
| Adaptation Range Of Water Quality | 10 μω to 1000 μω |
| Instrument For Temperature | -20 °F to 140 °F (-20 ℃ to 60 ℃) |
| Construction Of Cable | Conductor: Multi-strand tinning copper wires twisted Core wire: Special PP mixed insulation Celeron : Special PUR or PE mixed Celeron color: natural color |
