Overview

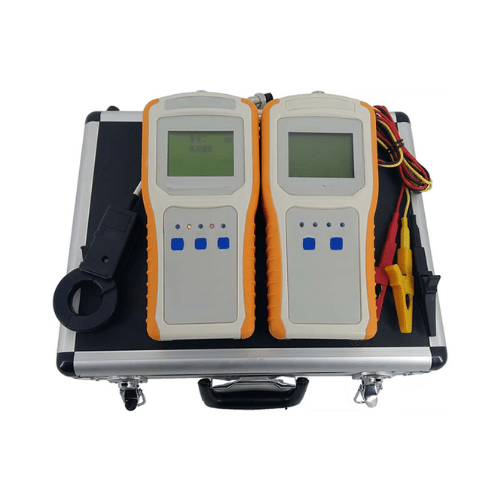

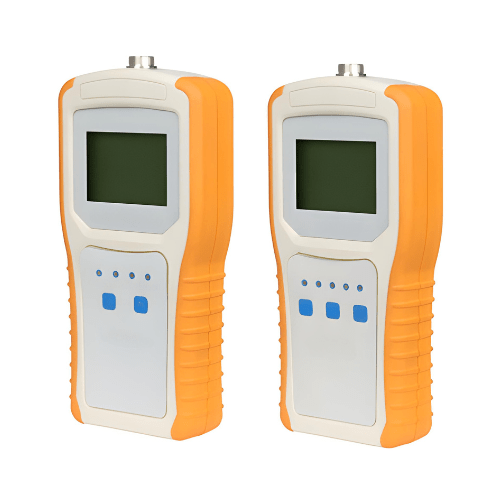

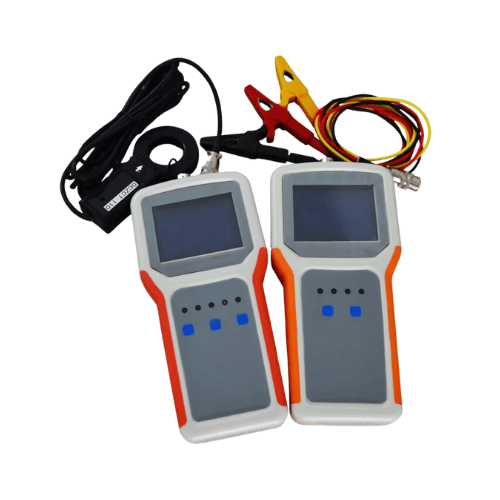

Enviro Test Construct DC ground fault locator not only can provide a solution on accurately testing the faults of the indirect grounding of the direct current system, non-metal grounding, loop grounding, simultaneous grounding of the anode and cathode, balanced grounding of the anode and cathode and multi-point grounding.
Technical Specifications
| Testable grounding resistance range | 0 KΩ to 500 KΩ at 220 V, 0 KΩ to 250 KΩ at 110 V 0 KΩ to 50 KΩ at 48 V, 0 KΩ to 10 KΩ at 24 V |
| Detection signal | ≤ 0.2 W |
| Ground impedance distribution capacitance value | single circuit branch: ≤ 8 uF, total system ground capacitance ≤ 100 uF |
| Direct current system voltage | 220 V ± 10 %, 110 V ± 10 %, 48 V ± 10 %, 24 V ± 10 % |
| Humidity | ≤ 95 % |
| Environment temperature | -31 °F to 131 °F (-35 °C to 55 ° C) |
| Size | 18.11 in x 9.44 in x 4.72 in (460 mm x 240 mm x 120 mm) |
| Weight | 6.17 lb (2.8 kg) |
