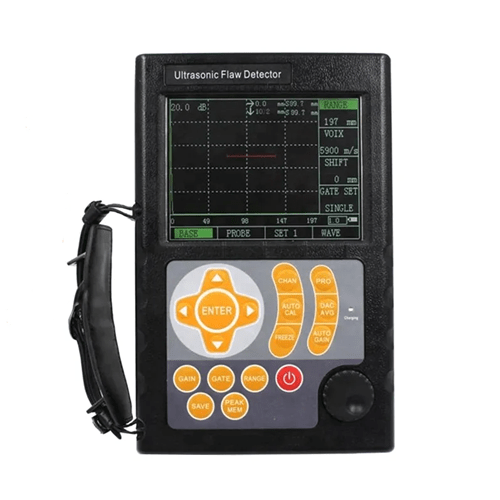

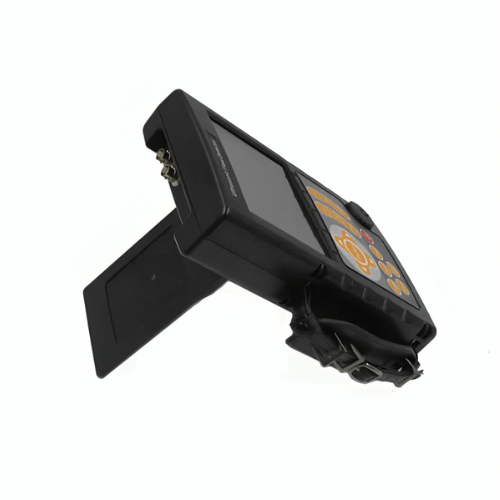

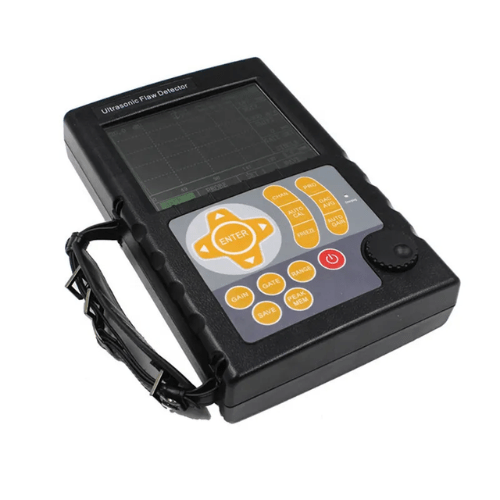

Enviro Test Construct Crack Detector

The CDDL Crack Detector has a measuring range 0 mm to 6000mm, gain of 0 to dB 100 dB, D-Delay  of -20µs to +3400 µs, and resolution of 0.1mm to 1 mm

SKU: ETCCDDL-165 Category:

Features

  • Automated calibration of transducer Zero Offset aor Velocity;
  • Automated gain, Peak Hold and Peak Memory;
  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
  • Automated switch (Depth d,level p,distance s);
  • 100 independence setup,any criterion can be input freely, we can work in the scene without test block;



Technical Specifications

Measuring Range0 mm to 6000 mm
Gain0 dB to 100dB
D-Delay -20 µs to +3400 µs
Resolution0.1mm (2.5mm to 100mm) 1mm (>100)
P-Delay0µs to 99.99µs
Material Velocity1000 m/s to 9999m/s
Temperature-68 °F to 122 °F (-20 ℃ to 50 ℃)
Humidity20% to 90%RH
Power7.4 V 4800 mAh
Working Time>8 hours
DisplayLED true color
