Technical Specification
| Working Freq | 60 KHz, sine wave |
| Measurement range for conductivity | 7.76% IACS to 112 % IACS, or 4.5 MS/m to 65 MS/m or resistivity 0.01538 Ω mm²/m to 0.22222 Ω mm²/m |
| Resolving power | 0.01% IACS (when <51% IACS); 0.1% IACS (51% IACS to 112% IACS) |
| Measuring precision | ±0.5% reading |
| Lift-off effect | Probe compensation 0.019 in (0.5 mm) |
| Temp. measurement | 32 oF to 122 oF (0 ℃ to 50 ℃) precision 32.9 oF (0.5 ℃) |
| The function of auto compensation | Measured result of conductivity, adjusting to value at temp. 68 oF (20℃) automatically; Manual input temperature compensation mode |

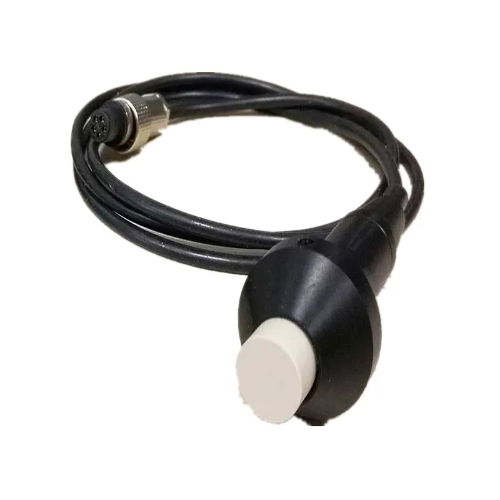

| Probes | The probe of diameter Φ 0.55 in (Φ 14 mm), working freq. 60 KHz. The probe is made of imported material, wear-resistant and high-temperature resistant, and can be replaced intelligently |
| Normal working environment | Temp. 32 oF to 122 oF (0 ℃ to 50 ℃); relative humidity, 0% to 95% |
| Display | Liquid crystal big screen, back-light designed, multiple items of important parameter displayed simultaneously. |
| Power supply | Equipped with a lithium-ion battery of 2200 mA/h |
| Reading memory | Storage for 16000 groups of measured data files. |
| Communication with the PC machine | RS 232 interface |
| Weight of host machine | 1.10 lb (500 g) (including batteries) |
| Dimension of a host machine | 8.66 in x 3.74 in x 2.16 in (220 mm x 95 mm x 55 mm) |
