Overview

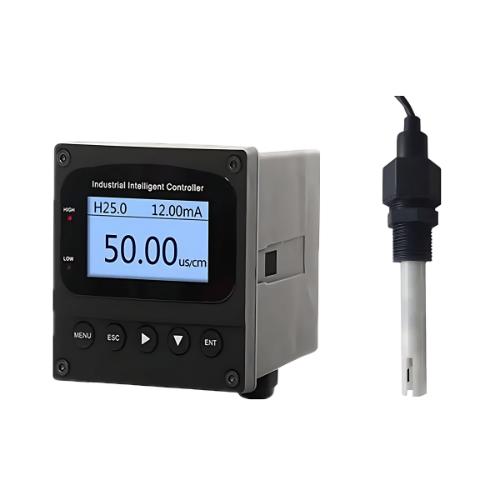

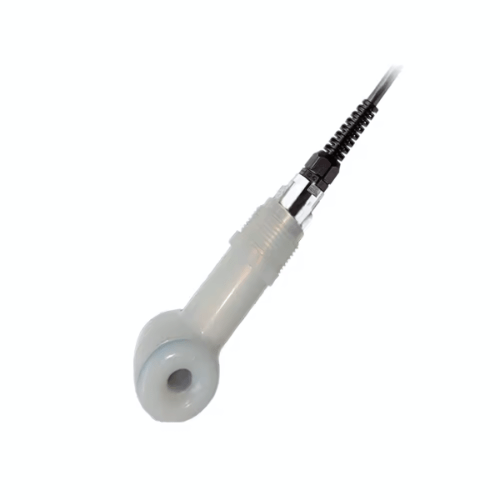

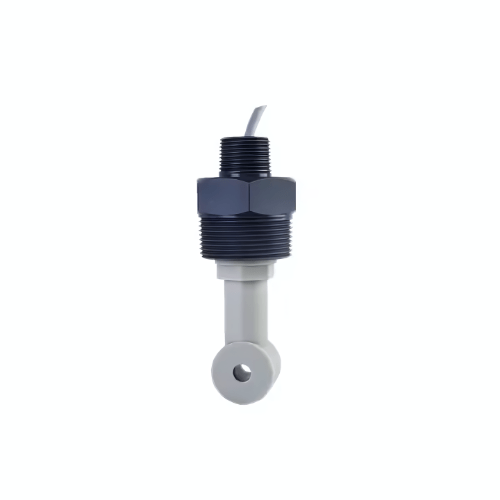

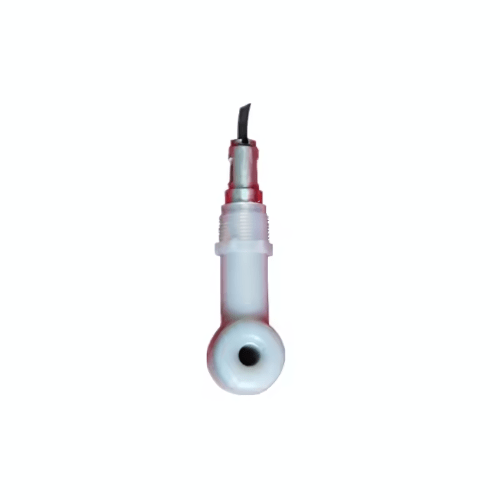

Enviro Test Construct conductivity sensor is widely used in pipe cleaning of power plants and foodstuff, as well as chemical production highly polluted environment. Suitable acid concentration measurement and the conductivity measurement of a high concentration salt solution less than 10 %.
Technical Specifications
| Maximum Pressure | 1.6 MP |
| Measuring Range | 0 ms to 10 ms, 0 ms to 20 ms, 0 ms to 200 ms, 0 ms to 2000 ms 0 % to 10 % HCL, NaOH ,0 % to 15 % nitric acid, 0 % to 30 % sulfuric acid |
| Accuracy | ± (+25 us to measure the value of 0.5 %) |
| Electrode Body Materials | PP, ABS, PTFE optional |
| Installation | Flow through, pipeline, Buried |
| Pipe Installation | Pipe threads 1 ½ or ¾ NPT |
