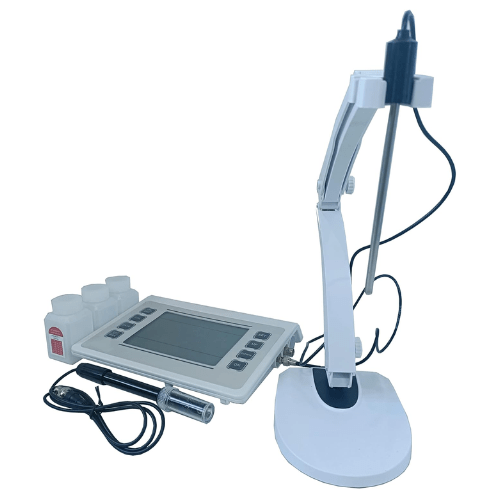

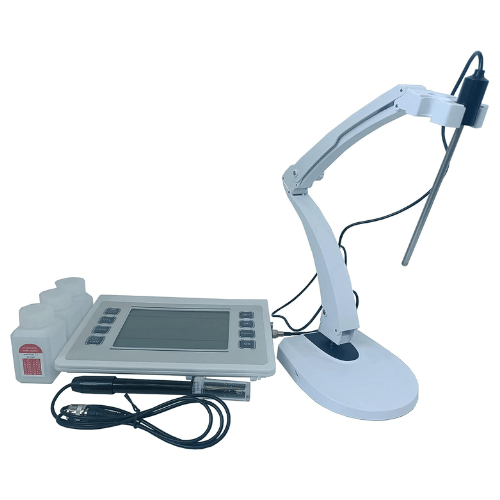

Enviro Test Construct Conductivity Meter
Enviro Test Construct Conductivity Meter - Image 2

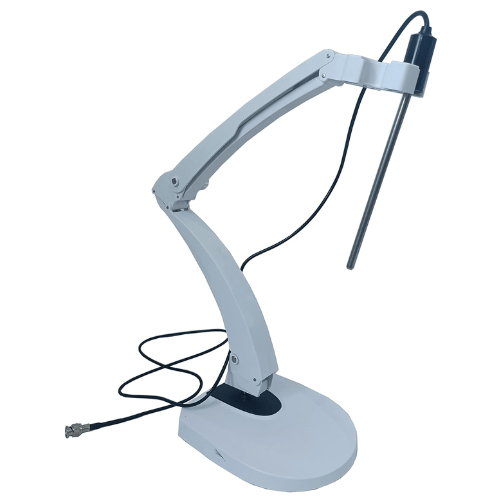

Enviro Test Construct Conductivity Meter - Image 3

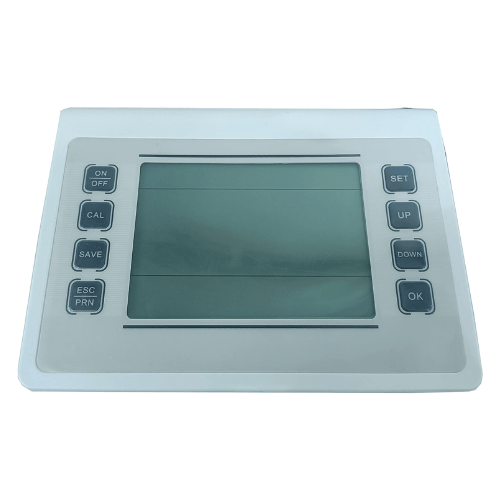

Enviro Test Construct Conductivity Meter - Image 4

Enviro Test Construct Conductivity Meter

This Conductivity meter has a pH measuring range of -2.00 pH to 18.00pH, resolution of 0.01 pH and 1 point, 2-point, 3 point of auto calibration.

SKU: ETCBCM-205 Category:

Features

  • 6.5 inch LED screen with concise and friendly-use interface
  • Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
  • It supports wireless Bluetooth printing. Real-time data transfer to mobile phone via Bluetooth is optional
  • Smart electrode status display to ensure accurate use
  • Omron long lasting and light touch key can be used more than 100,000 times
  • Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel
  • Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale
  • It has functions of ATC, auto salinity compensation and auto pressure compensation.
  • Polarographic DO electrode, short polarization time (3 to 5minutes)
  • Can test electric potential, pH, pX, ORP, ion concentration and temperature



Technical Specifications

pH Measuring Range-2.00 pH to 18.00pH
Resolution0.01 pH
AccuracyElectrode: ± 0.01 pH, Meter: ± 0.02 pH
Auto Calibration1 point, 2-point, 3 points
Input Current≤ 2 x 10 -12 A
Input Impedance>= 1 x 1012 Ω
Stability± 0.02 pH pr 3h
mV OR Measuring Range-1999.9 mV to 0 mV to 1999.9 mV
Resolution0.1 mV
Accuracy± 0.03 % FS
pX Measuring Range0.000 pX to 14.000pX
Resolution0.01 pX
Accuracy± 0.02 pX
Auto Calibration1 point, 2 point, 3 point, 4 point, 5 points
Ion Concentration. Measuring Range0 to 19990
Resolution4 significant figures (scientific notation)
Accuracy± 0.5 %
Cond. Measuring RangeConductivity
0.00 to 20.00 uS per cm, 20.0 to 200.0 uS per cm
200 to 2000 us per cm, 2.00 to 20.00 mS per cm
20.0 to 200.0 mS per cm
200 to 20000 mS per cm (k=10)
TDS 0 to 100 g per L
Salinity: 0 ppt to 100 ppt
Resistivity: 0 to 100 MΩ•cm
Resolution0.01 or 0.1 or 1uS per cm, 0.01 or 0.1 mS per cm
AccuracyElectrode: ± 0.5 % FS, Meter: ± 0.8 % FS
Electrode Constant0.1 or 1 or 10 cm 1
DO Measuring Range(0 to 20.00) mg per L (ppm), (0 to 200.0) %
Resolution0.1 or 0.01 mg per L(ppm), 1 or 0.1%
AccuracyElectrode: ± 0.1 per mg per L, Meter: ± 0.40 mg per L
Residual Current≤0.1mg per L
Salinity Compensation0 ppt to 45ppt, auto
Pressure Compensation(80 Kpa to 105) kPa, auto
Auto CalibrationAir saturated by water, water saturated by air
Electrode TypePolarographic
Display6.5 inch LED screen
Data Storage1000 sets
IP GradeIP 54
Power12 V or 1 A
Ambient Humidity≤ 85 %
OutputUSB and Bluetooth
Ambient Humidity≤85%
Reference Temp.77 ºF (25ºC),68 ºF (20ºC), 64.4 ºF (18ºC)
Temp. Compensation32 ºF to 122 ºF (0 ºC -50) ºC, auto
Response Time77 ºF ≤ 30 s (25 ºC, 90%response)
Ambient Temp.41 ºF to 95 ºF (5 ºC to -35ºC)
Resolution32.1 ºF (0.1 ºC)
Temp. Compensation32 ºF to 212 ºF (0 ºC to -100 ºC) auto or manual
Dimension8.46 in x 6.69 in x 1.45 in (215 mm x 170 mm x37 mm)
Net Weight1.32 lb. (0.6kg)
