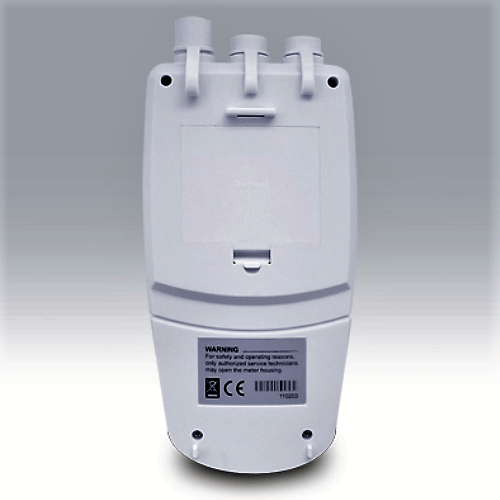

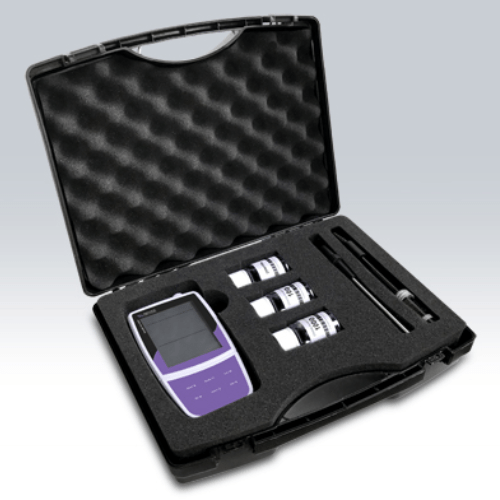

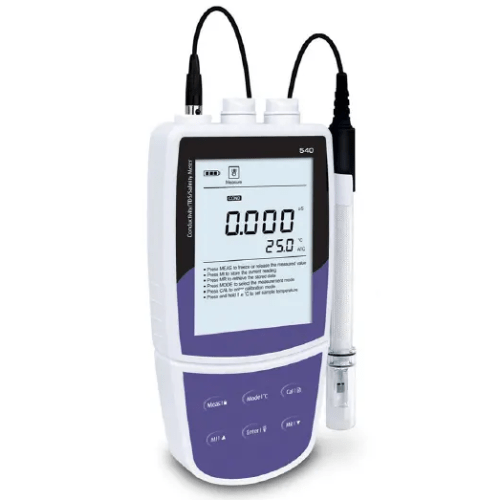

Enviro Test Construct Conductivity Meter Electrical Conductivity Meter

This Electrical Conductivity Meter has resolution of 0.001, 0.01, 0.1, 1, accuracy of 1% FS, and temperature compensation of 32°F to 212°F.

SKU: ETCCMTM-207 Category:

Features

  • 1-5 Points calibration, auto-recognizes conductivity standards
  • Automatic electrode diagnosis shows the calibration points and factors
  • Selectable settings: cell constant, temp, TDS; compensations for water types
  • Auto temp compensation for precise readings across the range
  • Auto-Read function senses and locks the measurement endpoint
  • Calibration due alarm prompts user to calibrate the meter regularly
  • Auto-Power Off effectively conserves battery life
  • Setup menu for customizable calibration, stability, and unit settings
  • Reset function restores factory settings automatically
  • Expanded memory stores or recalls up to 500 data sets
  • USB communication interface is easy to transfer data to PC
  • Multi-mode power scheme ensures seamless meter usage



Technical Specifications

Conductivity Measurement Range0.01 ms/cm to 20.00 ms/cm and 200.0 ms/cm and 2000 ms/cm and 20.00 mS/cm2 and 200 mS/cm2
Accuracy±0.5% F.S.
Resolution0.001 and 0.01 and 0.1 and 1
Calibration Points1 to 5 Points
Calibration Solution10 µS/cm and B4 µS/cm and 1413 µS/cm and 12.88 mS/cm and 111.8 mS/cm or User-Defined
TDS Measurement Range0 ppm to 10.00 ppm and 100.0 ppm and 1000 ppm 10.00 ppt and 100 ppt (Max. 200 ppt)
Accuracy1% FS
Resolution0.01, 0.1, 1
TDS Factor0.01 to 1.00 (Default 0.5)
Salinity Measurement Range0.00 ppt to 80.00 ppt and 0.00 psu to 42.00 psu
Accuracy1% FS
Resolution0.01, 0.1, 1
Measurement ModesPractical Salinity (Psu) or Natural Seawater (Ppt)
Resistivity Measurement Range0.00 MQ to 20 ΜΩ
Accuracy1% FS
Resolution0.01, 0.1, 1
Temperature Measurement Range32 °F to 221 °F (0 °C to 105 °C)
Accuracy0.9 °F (0.5 °C)
Resolution0.1 °F (0.1 °C)
Calibration Points1 Point
General Temperature Compensation32 °F to 212 °F (0 °C to 100 °C), Manual or Automatic
Cell ConstantK-0.1, 1, 10 or User-defined
Temperature CoefficientLinear and Pure Water Compensation
Reference Temperature77 °F (25 °C), 68 °F to 77 °F (20 °C or 25 °C)
Hold FunctionManual or Automatic Endpoint Detection
Stability CriteriaLow or High
Calibration Due Alaram1 to 31 days
Power OffManual or Automatic (10 min and 20 min or 30 min After Last Key Pressed)
MemoryStores Up to 50 Data Sets
OutputUSB Communication Interface
Connector6-pin Mini Plug
Power Requirement3 V x 1.5 V AA Batteries or DC 5 V Power Adapter
Dimension6.69 in × 3.34 in × 1.18 in (170 mm x 85 mm × 30 mm)
Weight0.62 lb. (300 g)
