Overview

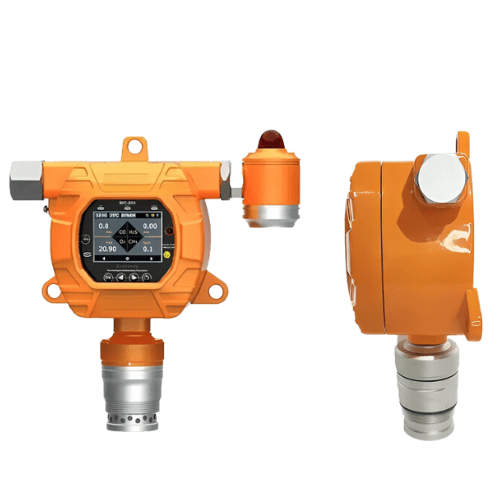

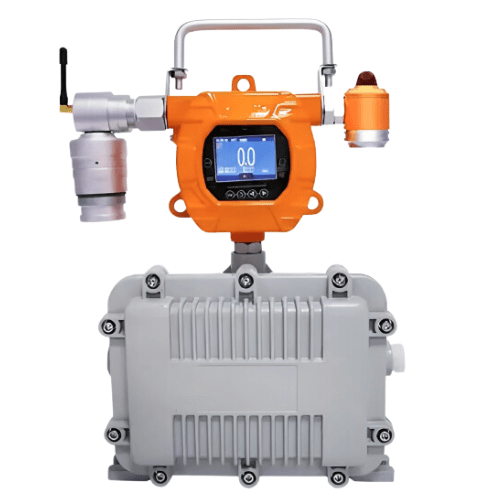

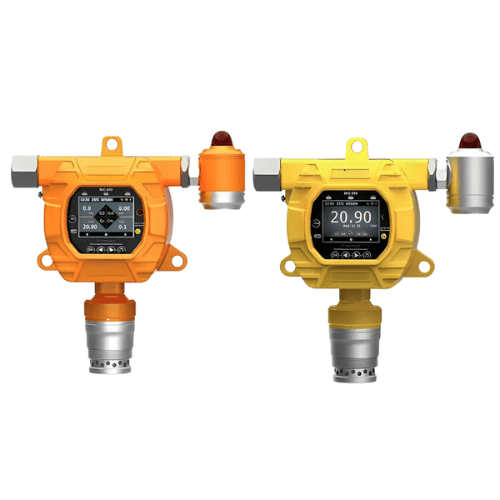

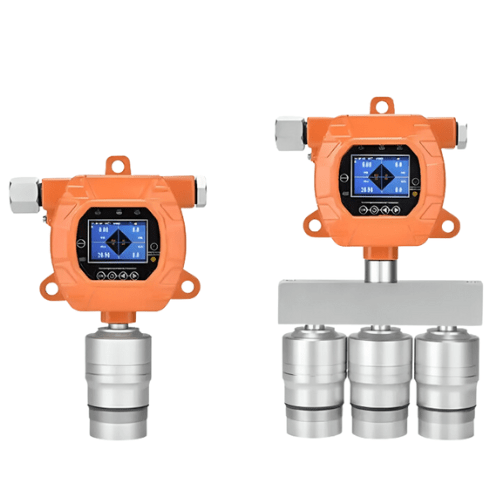

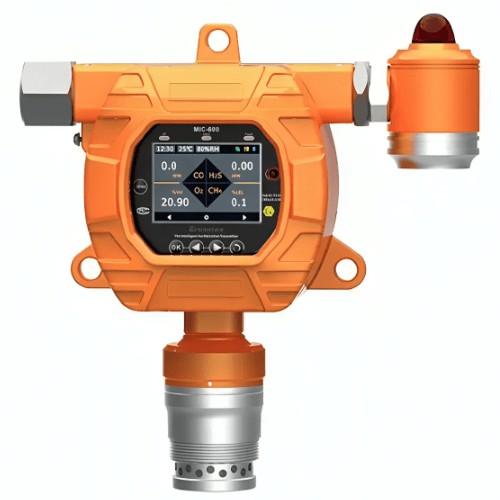

Enviro Test Construct combustible gas leakage detector has a multi-gas concentration display, and real-time curves. Its 2.5-inch color screen shows various data points and utilizes clear graphics for its menu. The analyzer stores 100,000 entries, with additional filtering for alarm data. Data can be viewed, deleted, and uploaded for analysis. Flexible connectivity includes wired, wireless, and network options.
Features
- Real-time monitoring
- Data Storage Capacity of 100,000
- 5 in HD Colour Screen
- Alarm Display
Technical Specifications
| Alarm Type | Sound and Light Alarm |
| Sensor | High-precision Sensor |
| Explosion-proof mark | ExdII CT6 |
| Response Time | < 30 seconds |
| Recovery Time | < 30 seconds |
| Sampling method | Diffusion |
| Detection principle | Electrochemical, infrared, or thermal conductivity |
| Voltage | 12 VDC to 30 VDC (24 V for Standard Power Supply) |
| Power supply | 2.1 A |
| Range | 0 ppm to 10 ppm, or 50 ppm |
| Minimum Reading | 0.01 ppm |
| Resolution | 0.01 ppm or 0.001 ppm |
| Protection | IP66 |
| Allowable error | ≤ ± 2% FS |
| Linearity | ≤ ± 2% |
| Repeatability | ≤ ± 2% |
| Uncertainty | ≤ ± 2% |
| Temperature | -40 ºF to 158 ºF (-40 °C to 70 °C) |
| Dimensions | 8.2 in x 6.6 in x 3.3 in (210 mm x 170 mm x 85 mm) |
| Weight | 3.9 lb. (1.8 kg) |
