Overview

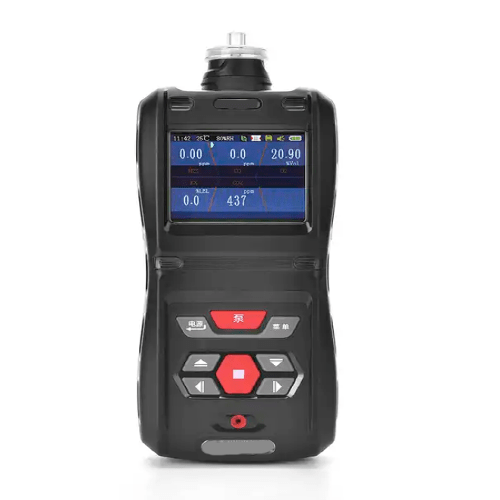

Enviro Test Construct combustible gas detector is used for the occasions where rapid detection of combustible gas concentrations, temperature and humidity measurements, and over-standard alarm. It adopts a high-definition color screen for real-time display, and uses imported gas sensors from well-known brands. The main detection principles are: electrochemical, infrared, catalytic combustion, thermal conductivity, PID. Advanced circuit design, mature kernel algorithm processing, unique shape design, has obtained a few software work patents and appearance patents. It can detect the gas concentration in pipelines or confined spaces and the atmospheric environment. It can detect gas leaks or high purity single gas purity of various background gases such as nitrogen or oxygen. It can detect more than 500 kinds of gases.
Key Features
- The measurement unit can be switched freely
- Built-in pump suction, integrated water vapor and dust filter
- Human-machine interface
- Large-capacity data storage function, support multiple storage methods
- High temperature gas detection
- Three display modes can be switched

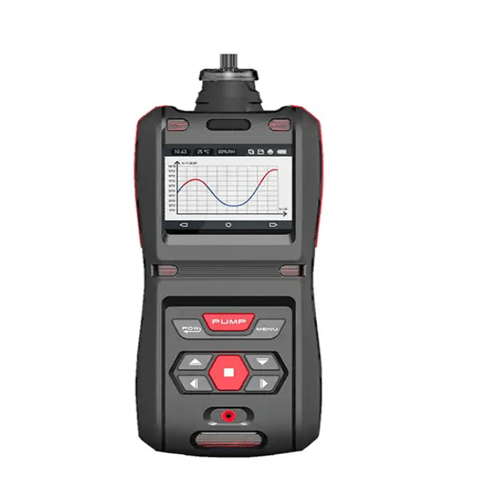

- Graphical display to reflect the trend of gas concentration
Technical Specifications
| Measuring Range | 0 ppm to 1 ppm, 0 ppm to 10 ppm, 0 ppm to 100 ppm, 0 ppm to 500 ppm, 0 ppm to 1000 ppm, 0 ppm to 2000 ppm, 0 ppm to 5000 ppm, 0 ppm to 10000 ppm, 0 ppm to 50000 ppm. 0 mg/L to 100 mg/L, 0% LEL to 100% LEL |
| Resolution | 0.001 ppm 0.01 ppm (0 ppm to 10 ppm), High accuracy 0.01 ppm (0 ppm to 100 ppm), 0.1 ppm (0 ppm to 1000 ppm), 1 ppm (0 ppm to 5000 ppm), 0.01 mg/L, 0.1% LEL |
| Working principle | Electrochemical, infrared, catalytic combustion, thermal conductivity, semiconductor, PID, etc. Depends on measuring range, field environment and customer requirements. |
| Sensor Life | Electrochemical: 2 years to 3 years Infrared: 5 years to 10 years Catalytic combustion: 2 years to 3 years Thermal conductivity: 2 years to 5 years Semiconductor: 2 years to 3 years PID: 2 years |
| Sampling Method | Built-in pump suction Flow: 500 mL/min |
| Display | 2.5 in (63.5 mm) HD color screen 8 keys operation |
| Accuracy | <+2% F.S. (Customizable with higher accuracy) ≤±2% |
| Linearity Repeatability | <±2% |
| Alarm | Sound and light alarm, vibration alarm, visual alarm, sound, and light + vibration + visual alarm, shutdown alarm |
| Response time | ≤20 s |
| Recovery time | ≤30 s |
| Working power | DC 3.7 V |
| Battery capacity | 3.7 V DC, 6000 mA high-capacity rechargeable polymer battery. With functions of over charge, over discharge, over voltage, over heat, short circuit protection. |
| Working environment | Temp: -40 °F to 158 °F (-40 °C to 70 °C) Relative humidity: <0% RH to 99% RH (Built-in filter for use in high humidity or dusty environments) |
| Sample gas temperature | -40 °F to 158 °F (-40 °C to 70 °C) Optional high temperature sampling cooling filter handle to detect 1472 °F (800 °C) or higher gas |
| Temperature measurement | -40 °F to 248 °F (-40 °C to 120 °C) Accuracy: 32.9 °F (0.5 °C) |
| Humidity measurement | 0% RH to 100% RH Accuracy: ±3% RH |
| Data storage | Standard configuration is 100,000 pieces of data capacity, support CF card storage. Support local viewing, deletion or data export, free upper computer communication software, storage function is turned off by default, can be set to on, storage interval can be set arbitrarily. |
| Communication interface | USB (Charging and communication) Infrared or RS 232 |
| Interface language | English |
| Explosion-proof | Intrinsically safe Exia CT 4 Ga |
| Protection | IP 67 dust-proof and splash-proof |
| Dimensions | 7 in x 3 in x 1.2 in (180 mm x 78 mm x 33 mm) |
| Weight | 0.7 lb (350 g) |
