Overview

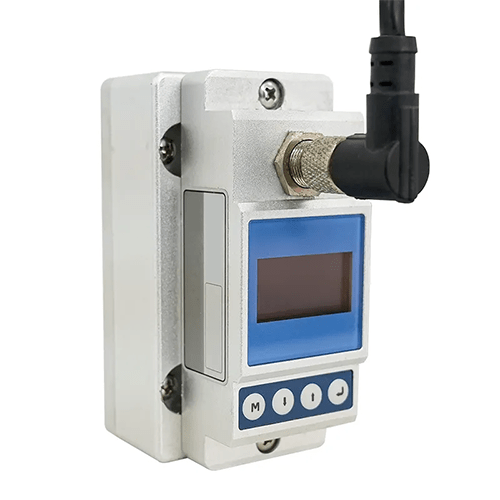

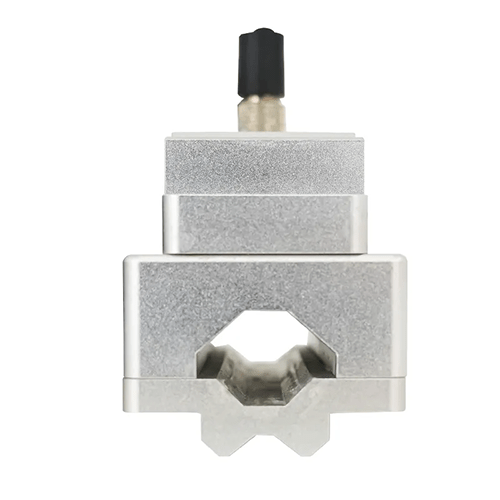

Enviro Test Construct clamp on ultrasonic flow meter is a new generation of ultrasonic flowmeter with stable performance developed by using the world’s advanced time measuring chip with time resolution up to 50 ps.
Technical Specification
| FLow range | 0.1 m/s to 5.0 m/s |
| Accuracy | +-2.0% |
| Repeatability | 0.8% |
| Measuring pipe diameter | Ω 9.53 to Ω 90 |
| Memory function | With daily, monthly, annual flow accumulations |
| Analog output | 4 mA to 20 mA, max load 600 Ω |
| Alarm output | OCT upper and lower limit alarm function |
| Communication interface | RS 485 |
| Power supply | 24 V DC |
| Cable length | 2.0 m |
| Keyboard | Four taps on the key |
| Display | OLED 128 pixels x 64 pixels dot matrix display |
| Flow accumulator | 6 bit flow accumulator |
| Suitable pipe material | Stainless steel, carbon steel etc |
| Ambient Temperature | 32 °F to 122 °F (0 to 50) |
| Medium Temperature | 32 °F to 122 °F (0 to 50) |
| Ambient Humidity | Range 0% RH to 95% RH |
| Protection grade | IP 54 |
