Features

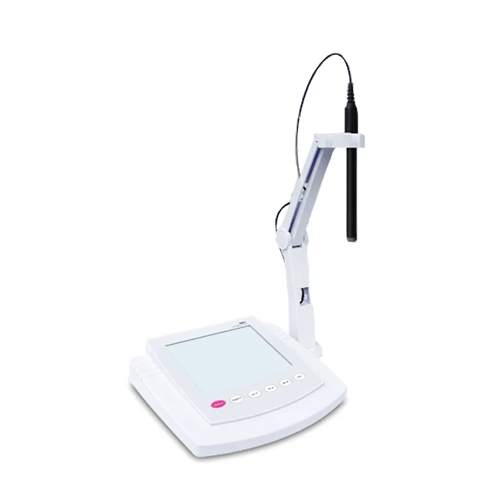

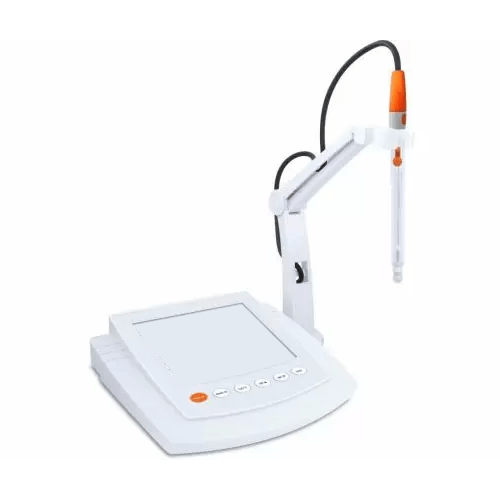

- Benchtop chloride ion meter, large backlit LCD
- 2-5 points calibration, 8 concentration options
- Direct ion concentration readout simplifies measurement
- Units: ppm, mg/L, mol/L
- Auto temperature compensation for accurate readings
- Auto-Read function locks measurement endpoint
- Calibration due alarm for regular calibrations
- Automatic electrode diagnosis with calibration details
- Setup menu for customizable settings
- The reset function restores factory defaults
- Stores/recalls 500 data sets
- USB interface for easy PC data transfer
Technical Specifications
| Ion Concentration Range | 0.02 ppm to 1900 ppm |
| Ion Concentration Resolution | 0.001, 0.01, 0.1, 1, automatic |
| Ion Concentration Accuracy | ±0.5% F.S. |
| Ion Concentration Calibration Points | 2 to 5 points |
| Ion Concentration Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 |
| Ion Concentration Measurement Units | ppm, mg/L, mol/L, mmol/L |
| Mv Range | -1999.9 mV to 1999.9 mV |
| Mv Resolution | 0.1 mV |
| Mv Accuracy | ±0.2 mV |
| Temperature Range | 32 °F to 221 °F (0 °C to 105 °C) |
| Temperature Resolution | 0.1 °C/ °F |
| Temperature Accuracy | ±0.5 °C / ±0.9°F |
| Temperature Offset Calibration | 1 point |
| Temperature Calibration Range | Reading ±10 °C/°F |
| Temperature Compensation | 32 °F to 212 °F (0 °C to 100 °C), manual or automatic |
| Hold Function | Manual / Auto-read measurement endpoint |
| Stability Criteria | Low / High |
| Calibration Due Alarm | 1 to 31 days or off |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 3.5 mm jack socket |
| Display | Custom LCD (125 mm × 100 mm) |
| Power Supply | 5 V DC power adapter |
| Environmental Conditions | 32 °F to 122 °F (0 °C to 50 °C), relative humidity <80% |
| Dimensions | 8.27 in x 7.4 in x 2.36 in (210 mm x 188 mm x 60 mm) |
| Weight | 3.30 lb. (1.5 kg) |
