| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates >0.2 mps |
| Response Time | 0 to 999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | DN 0.59 in to 236.22 in (15 mm to 6000 mm) |
| Rate Units | Meter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. Users configurable |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4 x 8 Chinese characters or 4 x 16 English letters |
| Communication Interface | RS-232C, baud-rate from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |

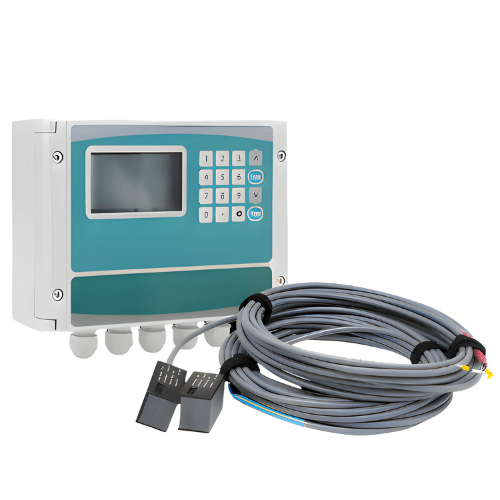

| Transducers | Model M1 for standard, other 3 models for optional |
| Transducer Cord Length | Standard 2 x 5 meters, optional 2 x 10 meters |
| Power Supply | 3 AAA Ni-H built-in batteries. When fully recharged it will last over 10 hours of operation. 100 V to 240 VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
