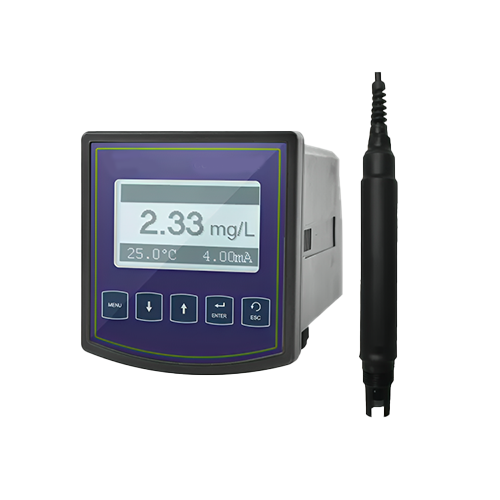

Overview
Enviro Test Construct Calcium Ion Meter Monitor and magnesium ion detectors are widely used in waterworks, power plants, boiler water, hospitals, sewage treatment, chemical industry, etc. It is designed for continuous testing of hardness values in liquids.
Features
- Advanced water hardness ISE technology
- Simultaneous display of water hardness, temperature, current output, and range ability alarm
- IP65-rated for waterproof, dust-proof, and damp-proof protection
- Digital LCD display with English interface
- Optional RS-485 communication for flexible data settings
- Analog output: 4 mA to 20 mA
- Customizable relay lag to prevent frequent operation
- Watchdog feature ensures continuous meter functionality
- Components sourced from reputable foreign brands
- Over 10 years of power-off protection
- Durable ABS plastic casing
Technical Specifications
| Customized Support | OEM, FCC, CE, ISO, ROHS |
| Measurement Range | 0 mg/L to 10000 mg/L (PPM), 32 °F to 140 °F (0 ℃ to 60 ℃) |
| Power Supply | 220 V AC, 50 Hz or 60 Hz |
| Resolution | 0.01 mg/L, 32.18 °F (0.1 ℃) |
| Accuracy | ±3%, 32.9 °F (±0.5 ℃) |
| Analog Output | 4 mA to 20 mA |
| Protection Grade | IP65 (waterproof, dust-proof and damp-proof) |
| Hole Size | 3.62 in × 3.62 in (92 mm × 92 mm) |
| Dimension | 3.78 in × 4.13 in × 6.61 in (96 mm x 105 mm x 168 mm) |
| Weight | 2.20 lb. (1 kg) |
