Overview

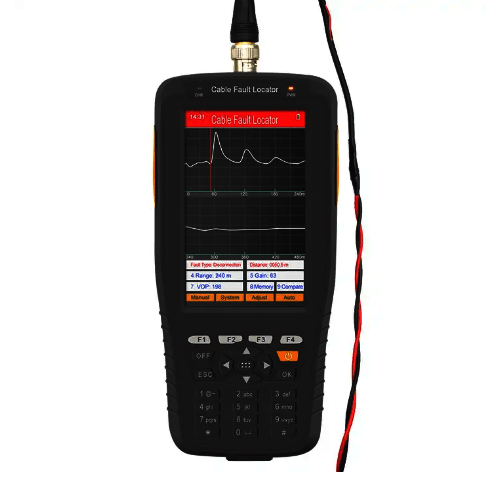

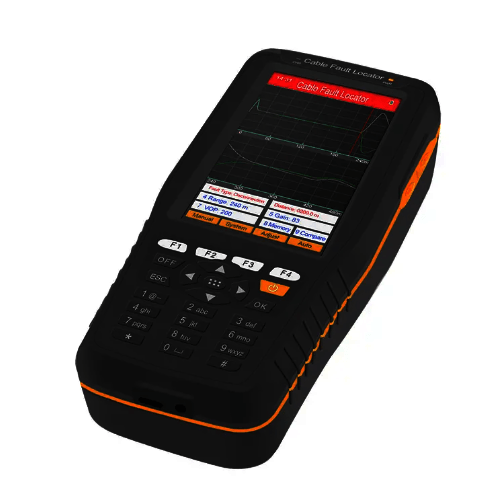

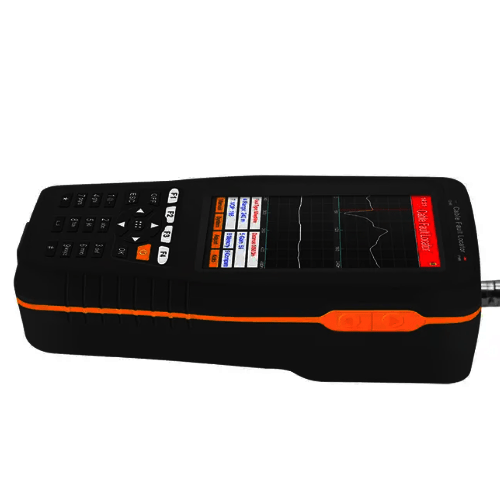

Enviro Test Construct Cable Fault Locators are used for automatically testing the precise location of the coaxial cable and communication cable’s broken wires, mixed wires, ground gas and related cable fault.
Features
- Digital gain automatic control system
- Digital waveform automatic recognition technology
- Quickly perform various complex operations
- Determine fault waveform accurately
- Convenient to compare the test waveform of the fault cable and the normal cable
- Clearly find the fault point location
- Large-screen LCD color display
- Humanization design of the interface menu
- Fast digital press button, easy for users to operate
- High-power lithium battery
- Data interface to support customers upgrade the system remotely
Technical Specification
| Max measurement range (Manual) | 4.96 mi (8 KM) |
| Max measurement range (Auto) | 2.48 mi (4 km) |
| Pulse width | 30 ns to 50 us |
| Pulse amplitude | 0 V to 30 V |
| Max resolution | 39.37 in (0.5 m) |
| Dead zone | 0 mi (0 m) |
| LCD | 480 pixels x 800 pixels color screen |
| Battery | 4400 mAH lithium-ion battery |
| Power Consumption | 1 W |
| Working temperature | 5 °F to 113 °F (-15 ℃ to +45℃) |
| Storage temperature | -4 °F to 131°F (-20℃ to +55℃) |
| Weight | 0.89 lb (400 g) |
| Dimensions | 7.4 in x 3.3 in x 2.0 in (190 mm x 84 mm x 52 mm) |
