Overview

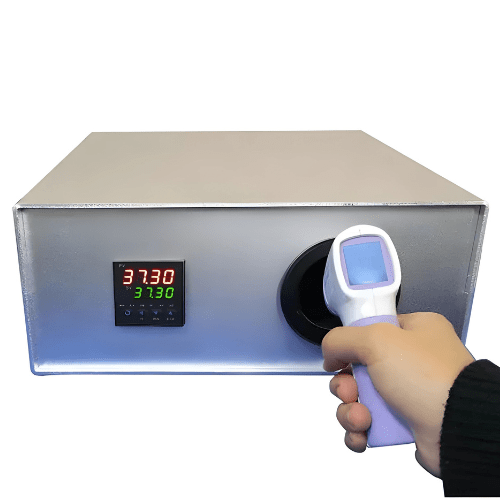

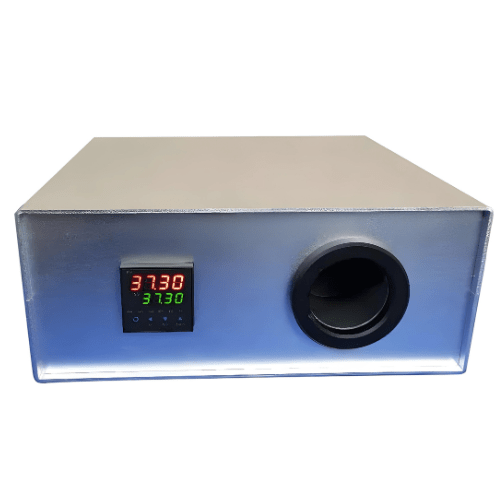

A precision blackbody (black body) is a controlled source of thermal radiation used to calibrate infrared radiation thermometers (pyrometers), thermal imagers and radiation heat flux gauges and radio-meters. It is our NEW GOER R&D and manufactured product which is special used in calibration for Infra-red ear temperature gun, forehead temperature gun and medical thermometer. It can also be used for the calibration of infrared body surface screening instrument. Through our main R&D of the temperature cycle system, plus the new materials, the emissivity can reach more than 0.99.
Features
- Emissivity: more than 0.99, isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed with the spectrum
- Novel design, simple operation
- Adapt automatic temperature control method, safe and reliable, fast temperature rise and good temperature stability
- Easy to operate, Small size and light weight, easy to carry
- Display the measured value, set value and parameter setting with double row digits
Technical Specifications
| Measure Range | 86 °F to 122 °F (30 ℃ to 50 ℃) |
| Temp Resolution | 32 °F (0.01 ℃) |
| Cavity Diameter | Φ56 mm |
| Cavity Depth | 50 mm |
| Emissivity | ≥0.99 |
| Temp Stability | ±0.1 ℃/30 min |
| Temp Uniformity | ± 32.18 °F (0.1 °C) |
| Power | 220 V ±10% 50 HZ |
| Weight | Approx 6.61 lb (3.0 kg) |
