Overview
Enviro Test Construct Benchtop Conductivity Meter with Temperature Compensation is an improved conductivity meter. It is added with the automatic temperature compensation function, with high price-performance ratio. It can be widely used for continuous monitoring of conductivity values of the solutions in thermal power plants, chemical fertilizer, metallurgy, environmental protection, pharmaceutical industry, biochemical industry, foodstuff, and running water.
Technical Specifications
| Measuring Range | |
| Conductivity | 0.00 μS/cm to 199.9 mS/cm |
| TDS | 0.1 mg/L to 199.9 g/L |
| Salinity | 0.0 ppt to 80.0 ppt |
| Resistivity | 0 Ω.cm to 100 MΩ.cm |
| Temperature (ATC/MTC) | -23 ℉ to 221 ℉ (-5 ℃ to 105 ℃) |
| Resolution | |
| Conductivity | Automatic |
| TDS | Automatic |
| Salinity | 0.1 ppt |
| Resistivity | Automatic |
| Temperature | 32.18 °F (0.1 ℃) |
| Electronic Unit Error | |
| EC/TDS/Sal/Res | ±0.5 % FS |
| Temperature | ±32.54 °F (±0.3 ℃) |
| Calibration | One point |
| Power Supply | DC 5 V to 1 W |
| Monitor | LCD display |

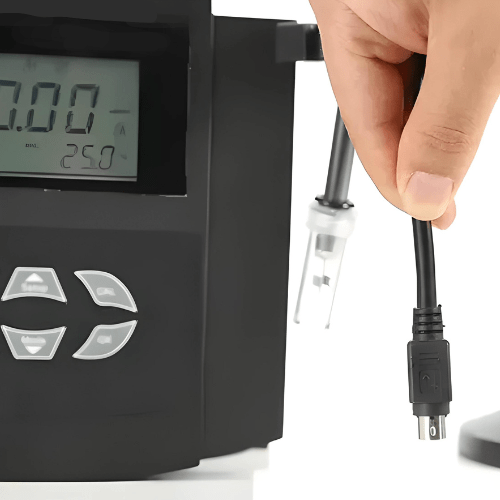

| Electrode Input Interface | Mini Din |
| Data Storage | Calibration data |
| Print Function | 99 measurements data Measurement results Calibration results Data storage |
| Temperature | 5 ℃ to 40 ℃ |
| Relative Humidity | 5% to 80% (Not condensate) |
| Installation Category | Ⅱ |
| Pollution Level | 2 |
| Altitude | <=2000 m |
| Size | 8.66 in × 8.26 in × 2.75 in (220 mm × 210 mm × 70 mm) |
| Weight | 1.10 lbs. (0.5 Kg) |
