Enviro Test Construct Basic Teaching Digital Oscilloscope

Overview

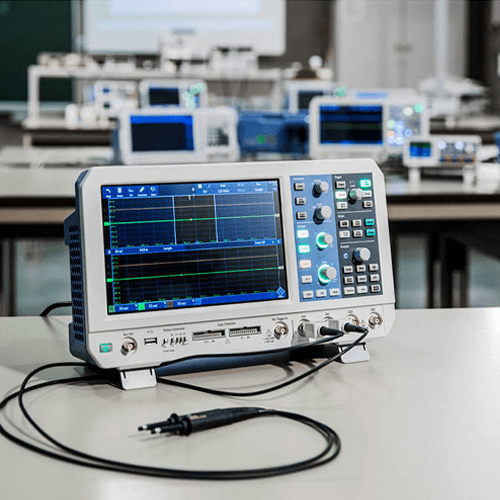

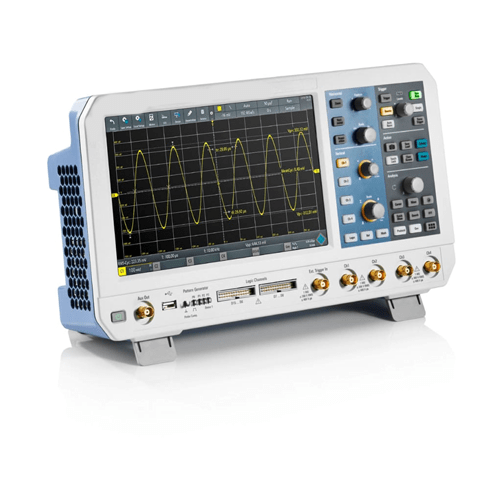

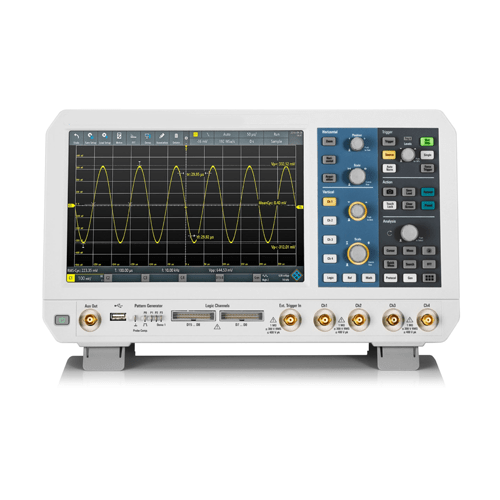

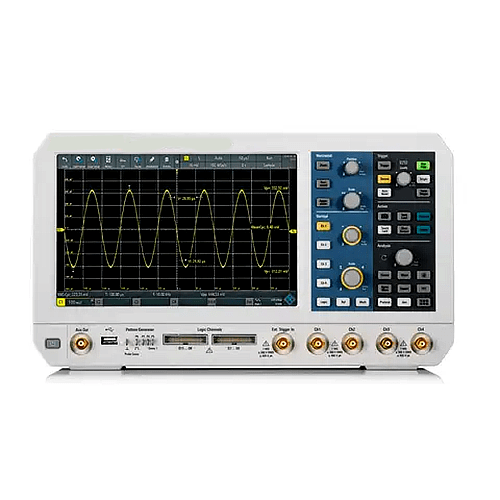

Enviro Test Construct basic teaching digital oscilloscopes (10-bit ADCs, 10 M sample memories, and 10.1 in (25.64 cm) touchscreens) combined with smart operating concepts make the oscilloscopes the perfect tools for troubleshooting embedded designs, for university laboratories, as well as for production and service departments. The largest displays 10.1 in (25.64 cm) with the highest resolutions of their class (1280 pixels × 800 pixels) work just like your smartphones. They contain capacitive touchscreens to quickly navigate pop-up menus and touch functions to easily adjust scaling, zoom in, or move waveforms. The 10-bit A or D converters yield up to four-fold improvements compared to conventional 8-bit A or D converters. You get sharper waveforms with more signal details. 10 M sample memory depths are available on each channel as soon as all channels are active. When interleaved, 20 M samples are available. This is 10 times more than comparable oscilloscopes offer. They, therefore, capture longer signal sequences for more detailed analysis results. They provide users with more than just oscilloscopes. They include logic analyzers, protocol analyzers, waveform and pattern generators, and digital voltmeters. Dedicated operating modes for frequency analyses, mask tests, and long data acquisitions are integrated. Debugging all kinds of electronic systems is easy and efficient – and satisfies the all-important rule of investment protection at very attractive prices.

Technical Specifications
