Overview

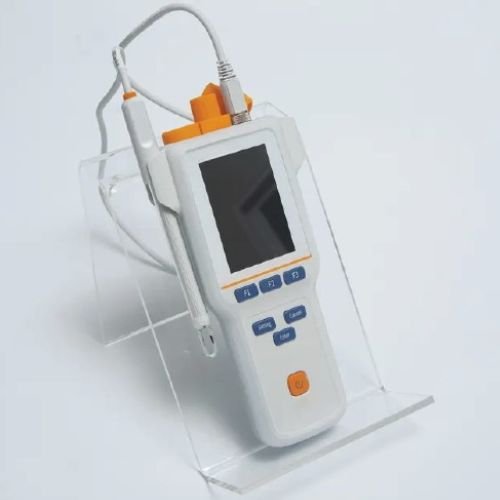

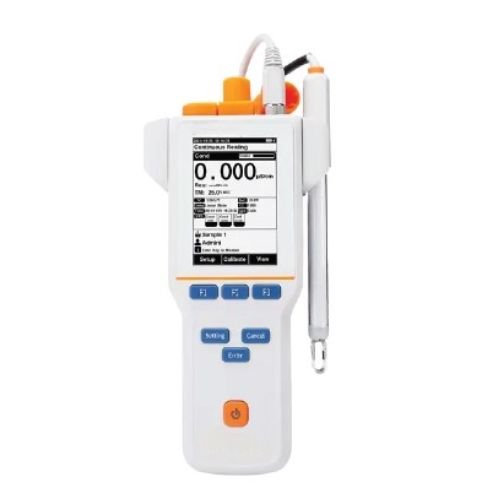

Enviro Test Construct automatic portable water conductivity meter portable meter features a 3.5 in (88.9 mm) LCD screen and automatic/manual temperature compensation for accurate results. It also has a data capacity of up to 500 sets and supports USB communication.
Features
- LCD screen
- Multi reading features
- Temperature composition
- Auto hold feature
- USB communication
Technical Specification
| Parameters | EC/Temp. (Resistivity/TDS/Sal.) | |
| Conductivity | Range | 0.000 μ s/cm to 500 m s/cm |
| Resolution | 0.001 μ s/cm minimum, various with a range selection | |
| Accuracy | ±1.0% FS | |
| Reference Temperature | (68 oF to 77 oF) 20 oC to 25 oC | |
| Calibration Points | 1 to 3 | |
| Standard Recognition | 84 μ s/cm, 1413 μ s/cm, 12.88 m s/cm | |
| Resistivity | Range | 5.00 Ω cm to 20.00 M Ω cm |
| Resolution | 0.01 Ω cm minimum | |
| Accuracy | ±1.0% FS | |
| TDS | Range | 0.00 ppt to 300 ppt |
| Resolution | 0.01 ppm minimum, various with range selection | |
| Accuracy | ±1.0% FS | |
| Salinity | Range | 0.0 ppt to 80.0 ppt |
| Resolution | 0.1 ppt | |
| Accuracy | ±2 ppt | |
| Temperature | Range | 23 oF to 230 oF (-5 oC to 110 oC) |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Accuracy | ±0.2 oC | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 500 results each |
| GLP Features | Yes | |
| Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
| Outputs | USB | PC, printer |
| Display Options | Backlight | Yes |
| Auto Shutdown | 300 sec, 600 sec, 1200 sec, 1800 sec, 3600 sec., off | |
| IP Rating | IP65 | |
| Date and Time | Yes | |
| General | Power | Rechargeable Lithium battery, AC Adapter, 100 V to 240 V AC input, DC 5 V output |
| Dimensions | 3.14 in x 8.85 in x 1.37 in (80 mm × 225 mm × 35 mm) | |
| Weight | 0.88 lb (400 g) | |
| Dimensions (Carton) | 16.14 in x 12.99 in x 6.49 in (410 mm × 330 mm × 165 mm) | |
| Weight (Gross) | 279.98 lb (5 kg) | |
