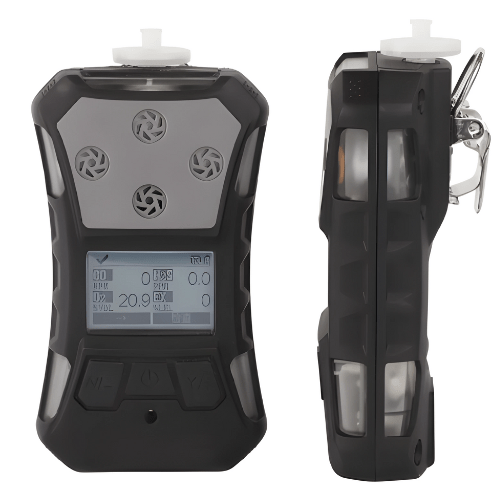

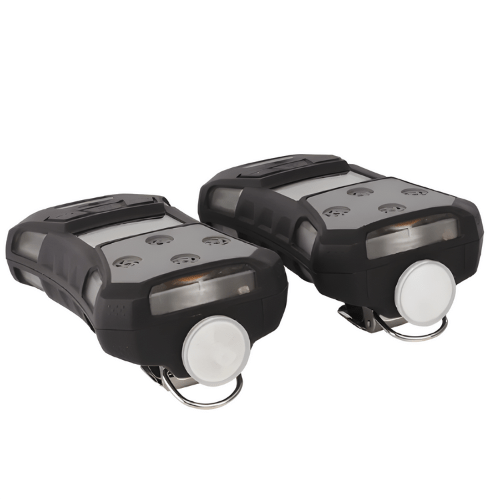

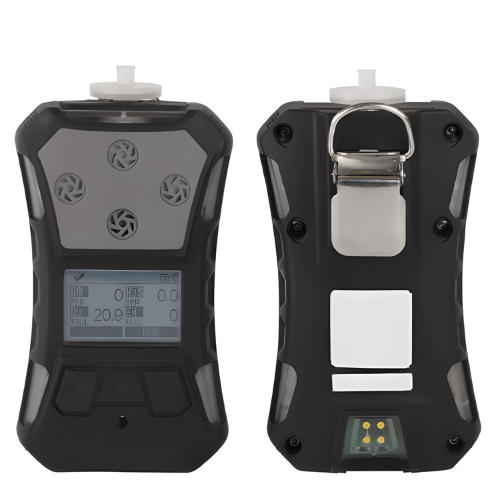

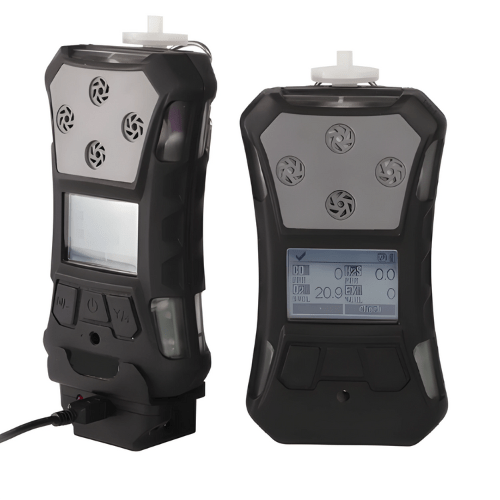

Enviro Test Construct Ammonia Gas Detector
Enviro Test Construct Ammonia Gas Detector - Image 2
Enviro Test Construct Ammonia Gas Detector - Image 3
Enviro Test Construct Ammonia Gas Detector - Image 4

Enviro Test Construct Ammonia Gas Detector

This Ammonia Gas Detector has a 0 to 10.00, 100, 200, 500, 1000, 2000 ppm measure range, an IP68 protection grade, and a ≤ 30 seconds response time.

SKU: ETCRAGD-111 Category:

Features

  • Rugged and durable
  • The instrument can effectively resist a three-meter drop
  • The protection level of the instrument reaches IP67
  • The instrument has passed the EMC anti-static interference test
  • Explosion-proof circuit design, safe and reliable
  • The instrument has got IECEX, ATEX, Chinese explosion-proof
  • Multiple security protection
  • The man down alarm function has upgraded the safety
  • Password protection function prevents non-operators
  • With safety reminder function, sound and light vibration alarm
  • The high and low alarm latched function allows the operator
  • Simultaneous measurement of multiple gases
  • The instrument can detect 1 to 4 gases at the same time
  • Real-time value, TWA, STEL, MAX, MIN multiple numerical display
  • Large screen display, flexible detection system
  • The screen can be automatically turned 180 degrees
  • Built-in powerful sampling pump, fast detection speed
  • Can be connected sampling tube externally
  • Pump suction and diffusion dual use, to provide operators
  • With a water trap filter, it can effectively filter water, oil, dust
  • Powerful function, more user-friendly operation
  • Beautiful and friendly user interface, reasonable
  • Optional Bluetooth function, data can be transmitted
  • Standard storage function, one-click data export, convenient
  • Unique modifiable ID identification function, convenient
  • A full range of automatic detection functions, automatic prompts
  • Support PPM and mg or m³ gas unit switch, the concentration value
  • Support each channel sensor to restore the factory setting separately
  • Support multi-language including English, Chinese and etc.



Technical Specifications

Sampling MethodPump suction type
Gas TypeNH3, ammonia
Measure Range0 to 10.00, 100, 200, 500, 1000, 2000 ppm
Resolution0.01 ppm, 0.1 ppm, 1 ppm
Response Time≤ 30 seconds
Precision≤ ± 2% F.S except for special gases
LanguageChinese or English
Automatically Test and Calibrate After Power-OnIncluding reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
UnitPPM and mg or m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
DisplayMonochrome graphics (160 x 96), screen can be automatically flipped
BacklightThe backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data RecordCan store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported, with data cable
Alarm95 dB buzzer, vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man, down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery3.7 V rechargeable lithium battery, battery capacity 2200 mA
Working HoursMore than 15 hours in continuous pumping mode
ChargerTravel charger with DC interface, charging time ≥ 4 hrs.
Explosion-Proof GradeIECEX or ATEX (II IG Ex Ia II C T4)CNEX: Ex Ia IIC T4 Ga
Certification(EU regulations)2004 or 108 or EC (EMC)94 or 9 or EC (ATEX)
Protection GradeIP68
Environmental Pressure86 to 106 Kpa
Working Temperature-4 °F to 122 °F (-20 ℃ to 50 ℃)
Humidity0 to 90 % RH (no condensation)
Size6.18 in x 3.32 in x 2.34 in (157 mm x 84.5 mm x 59.5 mm) (including back clip or water trap filter) (length x width x height)
Weight0.805 lb. (365 g) (including battery, belt clip and filter)
