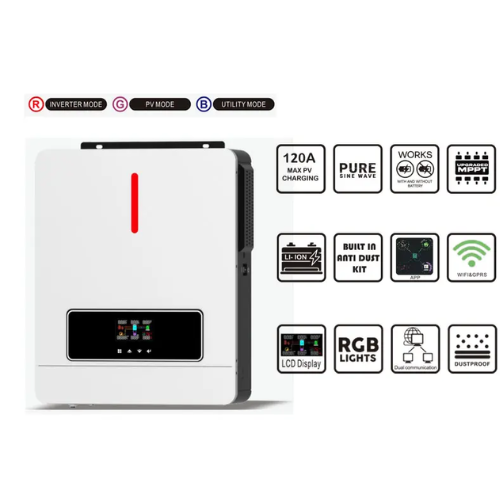

Enviro Test Construct 6.2KW Off Gird Hybrid Solar Inverter
Enviro Test Construct 6.2KW Off Gird Hybrid Solar Inverter - Image 2

Enviro Test Construct 6.2KW Off Gird Hybrid Solar Inverter

Advanced inverter with 60-90V DC startup, 60-450V max DC voltage, 24V nominal DC voltage, 120A max solar charging, 100A max AC charging, and 1 MPPT.

SKU: ETCI-173 Category:

Technical Specifications

Maximum PV Input Power6200 W
Rated Output Power4200 W 4200 VA
Maximum Solar Charging Current120 A
Nominal DC Voltage/Maximum DC Voltage360 VDC to 500 VDC
Start-Up Voltage/Initial Feeding Voltage60 VDC to 90 VDC
Maximum DC Voltage60 VDC to 450 VDC
Number Of Mppt Trachers/Maximum Input Current1 A to 18 A
Nominal DC Voltage24 VDC
Maximum Solar Charging Current120 A
Maximum AC Charging Current100 A
Dimension16.5 in x 13.8 in x 4.33 in (42 cm x 35 cm x 11 cm)
Net Weight19.6 lbs (8.9 kg)
