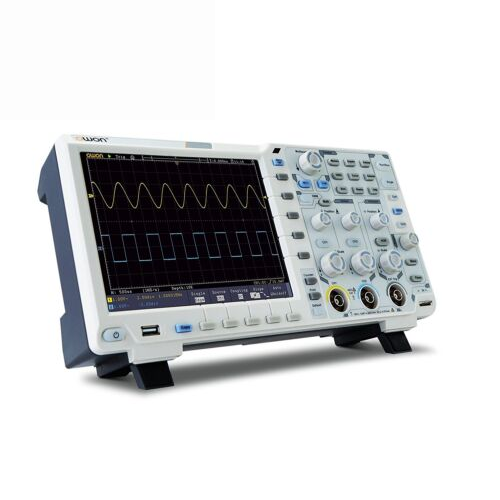

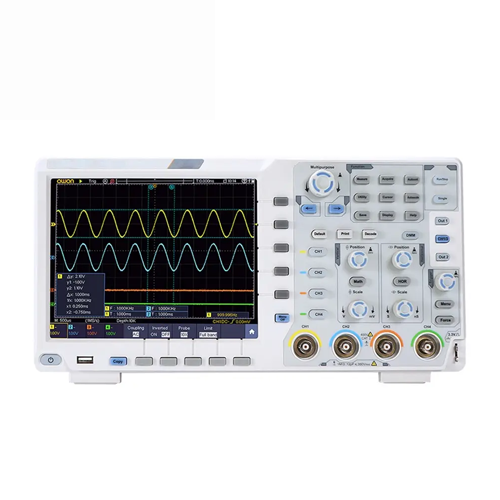

Name: Enviro Test Construct 1GS/s 4 Channels Digital Oscilloscope -
SKU: ETCDOS-113

Features

100MHz Bandwidth,1GS/s sample rate,4 Channels
40M record length 45,000 wfms/s waveform refresh rate
8-inch 800 x 600 high resolution LCD, optional multi-touch screen
SCPI and LabVIEW supported
Multi- trigger and bus decoding function (Optional)
Multi-interface:USB host, USB device, USB port for Pict Bridge, LAN, AUX and VGA(Optional)

Technical Specifications

Bandwidth	60 MHz to 100 MHz
Sample Rate	1 GS/s
Vertical Resolution (A/D)	8 bits, 14 bits
Record length	40 M
Waveform Refresh Rate	45,000 wfms/s
Horizontal Scale	2 ns/div to 1000 s/div, step by 125
Channels	4
Display	8 in (203.2 mm) color LCD, 800 x 600 pixels
Relay Time Accuracy	±1 ppm
Input Coupling	DC, AC, GND
Vertical Sensitivity	1 mV/div to 10 V/div (at input)
Trigger Type	Various types
Trigger Mode	Auto, Normal, Single
Vertical Range	Specific ranges

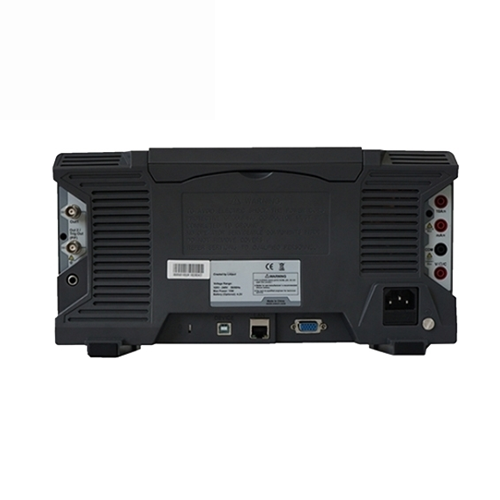

Communication Interface	USB host, USB device, USB port for Pict Bridge, Trig Out (P/F), LAN, VGA (optional)
Frequency Counter	Available
Power Supply	100 V to 240 V AC, 50 / 60Hz, CAT II
Fuse	2 A, T class, 250 V
Battery (optional)	3.7 V, 13200 mA
Dimension (W×H×D)	13.39 in × 6.97 in × 3.54 in (340 mm × 177 mm × 90 mm)
