Overview

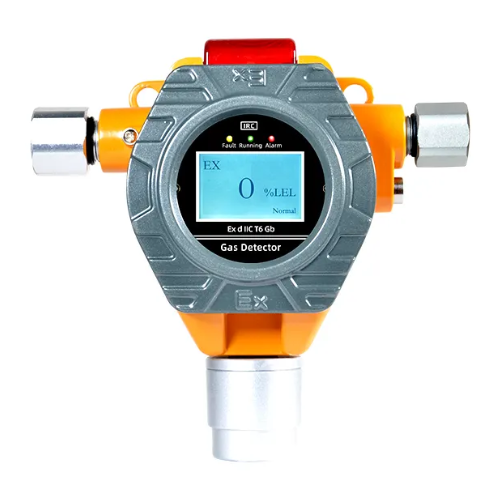

Enviro Test Construct digital gas detector with remote monitoring and high accuracy sensors digital display gas detector integrates audible and visual alarms, providing real-time monitoring of gas concentrations on-site. It features infrared remote control for parameter setting without opening the cover.
The converts the gas concentration signal from the air into an electrical signal for remote transmission. The device uses a three-wire 4-20mA output, allowing direct upload to DCS or PLC systems or using it independently. It also includes two sets of passive switch outputs for controlling other devices on-site, offering advantages such as long transmission distances and strong interference resistance.
Technical Specifications
| Detectable Gases | Combustible/toxic and harmful gases (see attached table) |
| Detection Method | Natural diffusion |
| Detection Principles | Catalytic; Electrochemical; Semiconductor; Infrared; PID |
| Detection Range | 0 to 100% LEL; 0-**** PPM |
| Resolution | 1% LEL; 1 PPM/0.1 PPM |
| Display | LCD digital display, LED digital display |
| Response Time | Combustible gases: <15s; Toxic gases: <60s |
| Power Supply | DC 24V |
| Output Signal | 4 mA to 20mA (three-wire), RS485 (four-wire) |
| Power Consumption | ≤3W |
| Alarms | Audible and visual alarms |
| Configuration Method | Remote control |
| Explosion-Proof Type | Flameproof |
| Protection Rating | IP66 |
| Explosion-Proof Rating | Ex d IIC T6 Gb |
| Wiring Distance | ≤1000 m |
