Overview

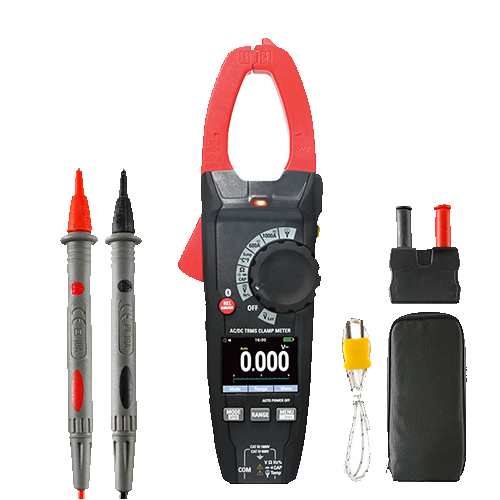

Enviro Test Construct’s Digital Clamp Meter with Multifunction Testing AC DC Current 1000A True-RMS Clamp Meter features a 1.8’’ TFT color LCD, True RMS measurement, and a 3000A flexible current probe for expanded range. It includes advanced functions like Low Pass Filter, Data Hold, and Bluetooth interface. Certifications include UKCA, ETL, and CE, ensuring compliance with international safety standards and providing market access.
Features
- True RMS capability for accurate AC and DC readings
- Fast A/D sampling for precise real-time data capture
- Data hold and peak hold functions for convenient data review
- Low input impedance to prevent false “ghost voltage” readings
- Built-in low pass filter for accurate VFD signal measurement
- Bright backlight and integrated flashlight for dark environments
- Auto power-off and low battery indication for extended battery life
- Wide jaw opening for measuring large conductors
- Trend capture and inrush current detection for advanced diagnostics
- Non-contact voltage (NCV) detection for user safety
Technical Specifications
| AC Current | 1000 A and Accuracy: ±(2.5% + 8d) |
| DC Current | 1000 A and Accuracy: ±(2.0% + 5d) |
| AC Voltage | 1000 V and Accuracy: ±(1.0% + 5d) |
| DC Voltage | 1000 V and Accuracy: ±(0.5% + 2d) |
| Capacitance | 100 mF and Accuracy: ±(2.5% + 5d) |
| Resistance | 60 MΩ and Accuracy: ±(3.0% + 5d) |
| Frequency | 10 kHz and Accuracy: ±(0.5% + 2d) |
| Inrush Current | 1000 A and Accuracy: ±(2.5% + 2d) |
| Temperature | 32 °F to 1832 °F (0 °C to 1000 °C) and Accuracy: ±(1.0% + 3d) |
| Display Count | 6000 Counts |
| Display Type | 1.8 in TFT Color LCD |
| Bandwidth | 10 kHz (Voltage/Current) |
| Jaw Opening | 1.89 in (48 mm) |
| Continuity Check | Audible buzzer at 50 Ω |
| Diode Test | Test current 0.3 mA |
| Power Supply | 2 × AA (1.5 V) Batteries |
| Operating Environment | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimensions | 10.63 in × 3.74 in × 1.65 in (270 mm × 95 mm × 42 mm) |
| Weight | 0.77 lb (350 g) |
