Overview

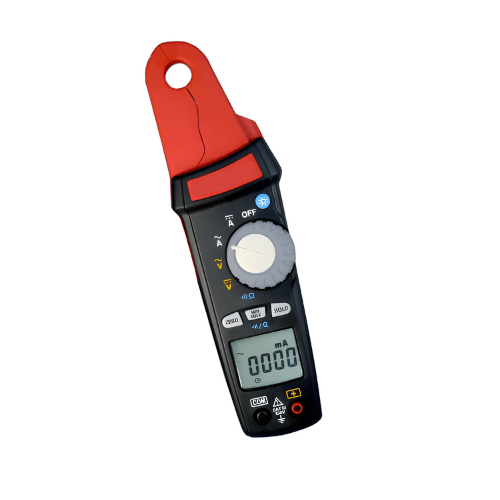

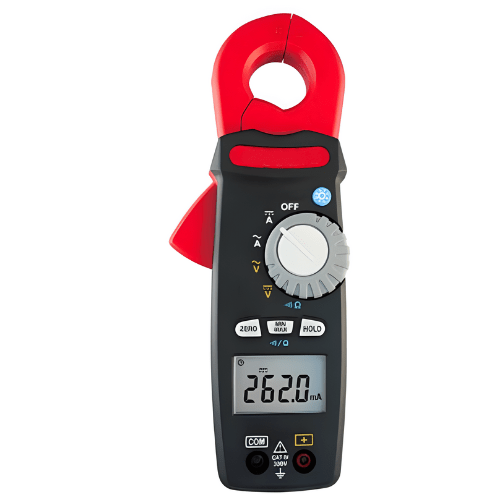

Enviro Test Construct Compact True-RMS AC/DC Clamp Meter and its 1mA lower current measuring performance makes it a perfect diagnostic. This meter has very stable one mA resolution at current range. This can be used as a sleep current measuring for automobile battery systems. With the range span to 100A, the car starting current can be captured. This unit is also built in with the most commonly used DMM functions makes it a versatile tool in the shop. The small diameter (½ inch or 13mm) and narrow jaw makes it ideal for use in confined spaces and on small gauge wires. Other features include up to 300 volt AC or DC voltage, resistance measurement functions, audible continuity test, display hold and peak detector.
Features
- 1 mA current resolution
- Thin jaw profile for easier wire measurement
- True-RMS measurement for all applications
- Built-in LED work light
- Backlight function
- MAX or MIN measurement function
- Date hold function
- Zero power off
- Auto ranging
- Auto power off
Technical Specifications
| Display Type | Digital Only |
| Measuring Current Range | 1 mA to 100.00 A |
| Measuring Voltage Range | 0.01 V to 300.0 V |
| Measuring Resistance Range | 0.1 K Ohms to 500.0 K Ohms |
| Operating Temperature | 32 ℉ to 104 ℉ (0 ℃ to 40 ℃) |
| Clamping Diameter | 0.5 in (13 mm) |
| Dimensions | 10.6 in x 2.8 in x 1.4 in (220 mm x 72 mm x 35 mm) |
| Weight | 0.46 Ib (0.21 Kg) |
