Overview

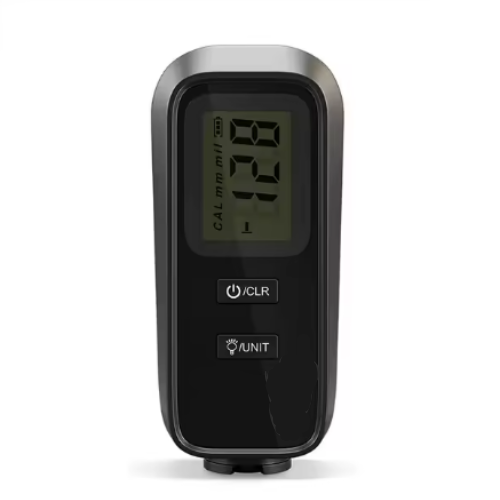

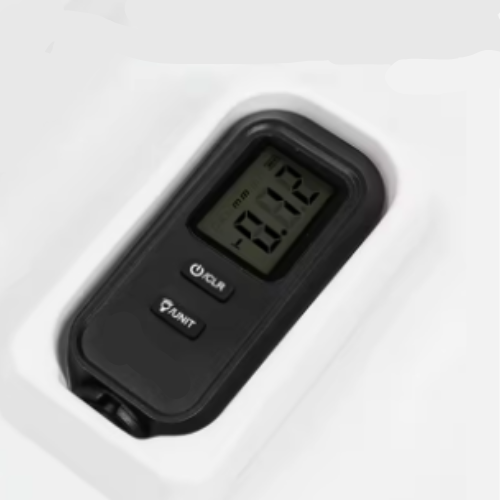

Enviro Test Consrtuct Automotive Thickness Gauge with LCD Backlight offers a compact and precise solution for measuring car paint and coating thickness. This device delivers quick, nondestructive, and accurate readings using a high-sensitivity plastic probe. It features an LCD backlight for clear visibility in low-light conditions and supports unit conversion between millimeters and mils. Operating on the Magnetic Induction Measurement Principle, this product can measure coatings on both non-magnetic and magnetic metal substrates within a range of 0–1.8 mm (0–71 mil) with a resolution of 0.05 mm (2 mil) and an error margin of ±0.1 mm. Designed for portability, it weighs only 64 g without batteries and is powered by removable CR2032 button batteries. With its compact dimensions and single-set data storage capability, this device is ideal for professionals seeking reliable and convenient paint thickness testing.
Features
- Quick and nondestructive measurement of car paint and coatings
- High-sensitivity plastic probe for accurate readings
- LCD backlight for easy use in dark or low-light environments
- Measures both non-magnetic and magnetic metal substrates
- Wide measurement range
- High resolution
- Supports unit conversion between millimeters and mils
- Compact and lightweight design
- Operates on the Magnetic Induction Measurement Principle
- Powered by removable CR2032 button batteries
Technical Specifications
| Screen Type | Black and white display (does not support rotation) |
| Battery | Removable CR2032 button battery |
| Probe Type | Plastic probe |
| Measurement Range | 0 in to 0.0709 in (0 mm to 1.8 mm) / 0 mil to 71 mil |
| Resolution | 0.00197 in (0.05 mm) / 2 mil |
| Measurement Error | ±0.00394 in (±0.1 mm) |
| Minimum Diameter of Substrate | Ф 1.97 in (50 mm) |
| Minimum Thickness of Substrate | 0.0197 in (0.5 mm) |
| Measurement Material | Non-magnetic metal matrix / Magnetic metal matrix |
| Supported Units | mm, mil |
| Data Storage | Only one set of data is supported |
| Work Temperature Range | 64.4°F to 86°F (18°C to 30°C) |
| Work Humidity Range | 10% to 80 % RH |
| Outline Dimensions | 1.50 in × 3.43 in × 0.87 in (38 mm × 87 mm × 22 mm) |
| Weight | 2.26 oz (63.98 g) (without batteries) |
