Advanced Underground Pipe Locator with Vibration Signal Detection – Enviro Test Construct

Overview:

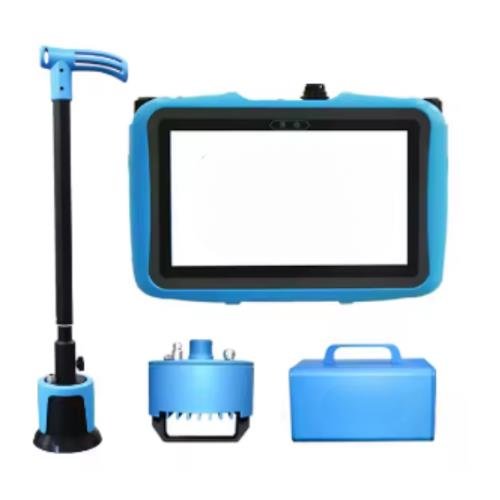

Enviro Test Construct advanced underground pipe locator with vibration signal detection is a newly developed professional device for non-metallic and metallic pipeline direction detection equipment with superior performance and convenient carrying. It is different from the traditional instruments on the market that only locate metal pipelines. It is used for the detection and inspection of pipeline directions such as water supply, heating, and fire protection. The device consists of two parts: a transmitter and a receiver. It adopts multi-frequency composite modulation sound wave vibration technology. By installing a sound vibrator at the pipeline interface, a specific sound wave signal with a mixture of multiple frequencies is generated in the pipeline. The signal is transmitted horizontally in both directions along the pipeline and vertically to the ground. The receiver is used to collect this specific sound wave signal on the ground and perform strength analysis to accurately locate the position and direction of the underground pipeline.

Features:

• Frequency analysis function: The transmitter transmits a specific frequency pattern, and the receiver accurately receives and eliminates external interference by analyzing the frequency.
• It uses multi-frequency composite modulation sound wave vibration technology, analyzes unique signal value, encodes and decodes composite waves, and avoids external influences.
• Cooperating with the sonic vibration transmitting device, the two-way effective detection transmission depth of pipeline positioning is ≤8 meters and the distance is ≤300 meters.
• It is suitable for the detection and inspection of metal pipes such as water supply, heating, fire protection, and non-metal pipes such as plastic, ceramic, and mud.

Technical Specifications:
