Overview

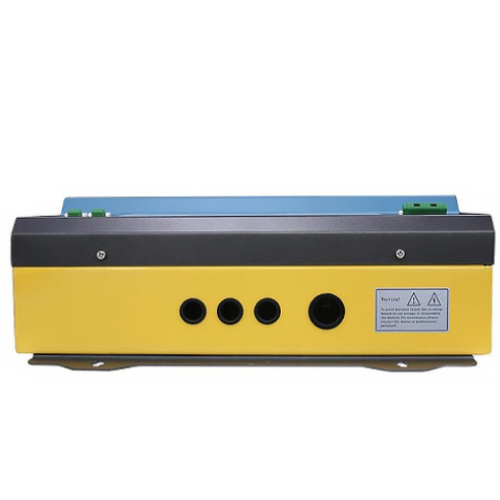

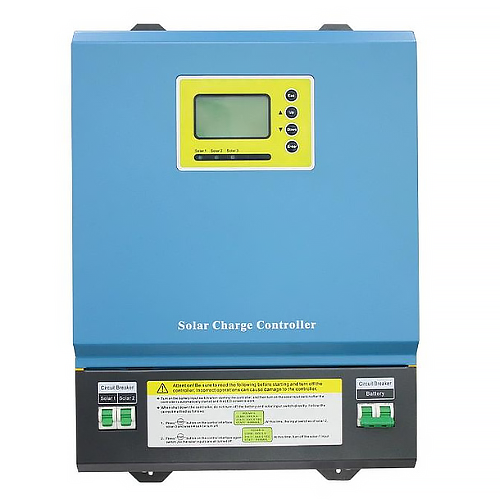

Enviro Test Construct solar charge controller 348 VDC system based on an MCU intelligent control technology, the product realizes solar charge and discharge management for batteries for longer lives of systems, widely applied to the large centralized solar power systems for families, schools, streets, industrial and mining enterprises, frontier defense, sea islands, pasturing areas.
Technical Specifications
| Rated Voltage | 192 V; x 2 or 384 V
|
| Rated Current | 50 A, 75 A and 100 A |
| Maximum Current Of Each Input | 25 A |
| Voltage Of Overcharge Protection | 222.4 V, x 2 or 384 v (settable) |
| Voltage Of Overcharge Recovery | 219.2 V, x 2 or 384 v (settable) |
| Rated Output Current | 50 A |
| Voltage Of Load Overvoltage Protection | 248 V, x 2 or 384 V (settable) |
| Voltage Of Load Overvoltage Recovery | 240 V, x 2 or 384 V |
| Voltage Of Load Over Discharge Recovery | 203.2 V, x 2 or 384 V (settable |
| Voltage Of Load Over-Discharge Protection | 175 V x 2 or 384 V |
| Overall Efficiency | ˃98 % |
| Starting Temperature For Exhaust Fan | ˃ 113 ⁰F (45 ⁰C) |
| Operation Or Storage Conditions | 32 ⁰F to 104 ⁰F (0 ⁰C to 40 ⁰C) |
| Ambient Temperature For Operation | 5 ⁰F to + 122 ⁰F (- 15⁰ C to + 50 ⁰C) |
| Product Dimension | 15.31 in x 12.60 in x 3.86 in (389 mm x 320 mmx x 98 mm) and 16.41 in x 14.17 in x 4.65 in (417 mm x 360 mm x 118 mm) |
| Packing Dimension | 16.93 in x 15.55 in x 7.09 in (430 mm x 395 mm x 180 mm) and 17.32 in x 16.54 in x 7.87 in (440 mm x 420 mm x 200 mm) |
| Net Weight | 11.46 lbs. (5200 g) and 18.52 lbs. (8400 g) |
