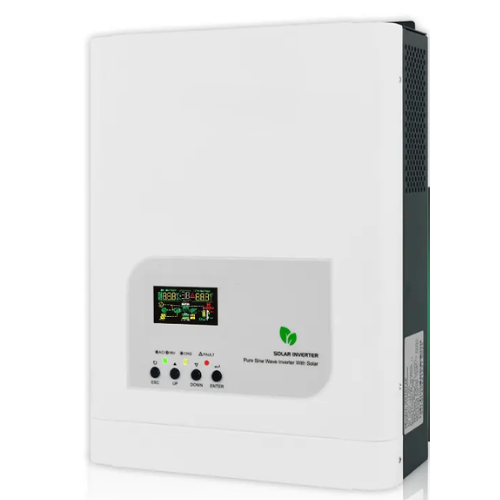

1.5 KVA 1500 VA 12 V 1200 - Watt Pure Sine Wave Off - Grid Solar Inverter With PWM
1.5 KVA 1500 VA 12 V 1200 - Watt Pure Sine Wave Off - Grid Solar Inverter With PWM - Image 2

1.5 KVA 1500 VA 12 V 1200 – Watt Pure Sine Wave Off – Grid Solar Inverter With PWM

Supports up to 800W PV array power with a maximum PV voltage of 150 V DC and a 15 V DC to 50 V DC range.

SKU: ETCI-205 Category:

Technical Specifications

Input Voltage154 VAC to 264 VAC ± 3 V
Output Voltage220 VAC ± 10 %
Output CurrentDependent on Connected Load and Conditions
Output Frequency50 or 60 Hz ± 1%
WaveformPure Sine Wave
Maximum PV Array Power800 W
Maximum PV Voltage150 VDC
PV Voltage Range15 vdc to 50 vdc
Controller TypePWM
Maximum Solar Charging Current60 A
Maximum AC Charge Current29 A
Weight16.7 lbs. (7.58kg)
Size16.9 in x 12.99 in x 6.69 in (43 cm x 33 cm x 17 cm)
