Overview

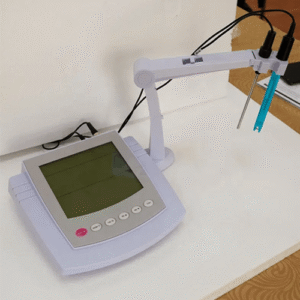

This upgraded version of Enviro Test Construct’s ion meter supports a large range of ion modes such as H+, Ag+, Na+, K+, NH4+, Cl-, F-, NO3-, BF4-, CN-, Cu2+, Pb2+, and Ca2+. It allows users to measure pH/pX, ion concentration, and potential temperature. Moreover, the device provides several ion concentration measurements, including direct reading of concentration, standard addition mode, sample addition mode, and GRAN mode. With three measurement modes, including continuous mode, timed reading mode, and auto-lock reading mode, this ion meter can recognise several pH buffers which meet with the GB, NIST, and DIN standards and can calibrate up to 5 points. The device adopts dot-matrix LCD screen with light touch keys that offers power-failure protection functions as well as automatic temperature compensation functions. By having a USB interface, this ion meter allows users to delete, view, print, and exchange data with computers.
Key Features
- USB interface
- Dot matrix LCD screen and light touch keys
- Automatic temperature compensation function
- Power-failure protection function
Technical Specifications
| Accuracy grade | 0.001 | ||||||
| Measuring range | pH：-2.000pH～20.000pH | pX：0.000pX～14.000pX | mV：-1999.9mV～1999.9mV | ion concentration: (0～1999.0), units: ug/L, mg/L, g/L, mol/L, mmol/L | |||
| Temperature | 23 to 230 °F (-5～110℃) | 23 to 230 °F (-5～110℃) | 23 to 230 °F (-5～110℃) | 23 to 230 °F (-5～110℃) | |||
| Resolution | pH/pX：0.001pH/pX | mV:0.1mV | |||||
| Temperature | 32.18°F (0.1℃) | 32.18°F (0.1℃) | |||||
| Accuracy | pH/pX：±0.002pH/pX | mV：±0.03%FS | ion concentration：: ±0.3% | ||||
| Temperature | ±32.18°F (±0.1℃) | ±32.18°F (±0.1℃) | ±32.18°F (±0.1℃) | ||||
| Input impedance | >1×1012Ω | ||||||
| Manual/automatic temperature compensation range | 32 to 140°F (0.0～60.0℃) | ||||||
| Power supply | DC adapter (9V DC,800mA, inside positive and outside negative) | ||||||
| Size | 11.02 x 8.46 x 3.62 in(28 × 21.5 × 9.2 cm) | ||||||
| Weight | 4.41 lbs(2kg) | ||||||
| Package Size | 14.57 x 12.2 x 13.39 in(37 x 31 x 34cm) | ||||||
| Gross Weight | 8.82 lbs(4kg) | ||||||
