Overview

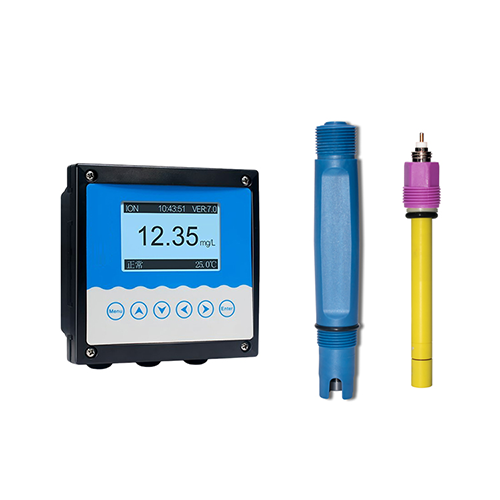

Enviro Test Construct industrial online ion meter with multi-mode calibration & alarm is a microprocessor-based water quality online monitoring control instrument. The instrument equipped with different types of ions electrode. It is widely used in power plants, petrochemical industry, metallurgical electronics, mining industry, paper industry, biological fermentation engineering, medicine, food and beverage, water treatment, aquaculture, modern agricultural planting and other industries.
Features
- Color Segment LCD Display
- Intelligent menu operation
- Multiple automatic calibration function
- Multiple signal output modes
- Manual and automatic temperature compensation
- Two sets of relay control switches
- High &low alarm and hysteresis control
- Display ions, temperature, etc Showed in one panel
- Password protection function to prevent misoperation by non-staff
Technical Specifications
| Measurement range | 0.04 mg/L to 100mg/L (maximum 39000mg/L, 2-12pH), |
| pH range: | 2.5 pH to 11pH |
| Measuring material | PVC Film |
| Material: | PP |
| Waterproof rating | IP68 |
| Temperature range | 0°F to 122°F (0°C to 50°C) |
| Temperature sensor | NTC10K |
| Range | 0.04 mb/L to 100mg/L |
| Accuracy | ±2.5% |
| Pressure range | Non pressure environment |
| Connection thread | NPT3/4 |
| Temperature | 0°F to 140°F (0°C to 60℃) |
| Cable length | 10.93 yards 10m or as agreed |
| Cable connector | Pin, BNC or as agreed |
| Resolution | 0.01mg/L |
| MOQ | 2 sets relay |
| Temperature | 32.18°F (0.1℃) |
| Reading value | ±2.5% |
| Temperature | 32.54 °F (±0.3℃) |
| Current output | 1 Way 4 to 20mA(load resistance<750Ω |
| Signal output | RS485 MODBUS RTU |
| Two sets of relay control contacts | 3A 250VAC,3A 30VDC |
| Power supply (selection) | 85 VAC to 265 VAC±10%,50±1Hz,power≤3W |
| power consumption | 9 VDC to 36 VDC |
| Installation | Panel or wall hanging type |
| Working temperature | 14°F to 140°F (-10° C to 60℃) |
| Relative humidity | ≤90% |
| Panel opening size) | 3.66 in x 3.66 in (9.3 cm x 9.3 cm) |
| Dimensions | 3.85 in x 3.85 in (9.8 cm x 9.8 cm) |
| Protection grade | IP65 |
| Weight | 1.32 lbs (0.6 kg) |
