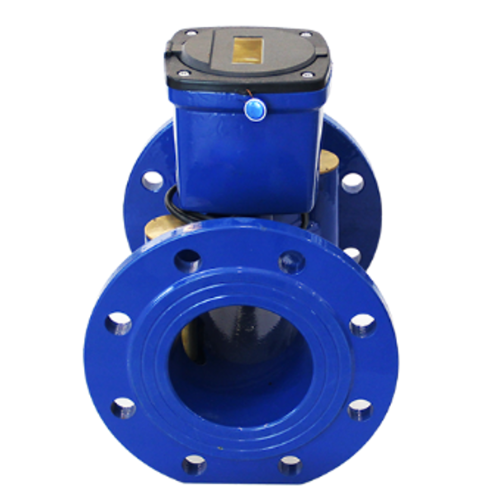

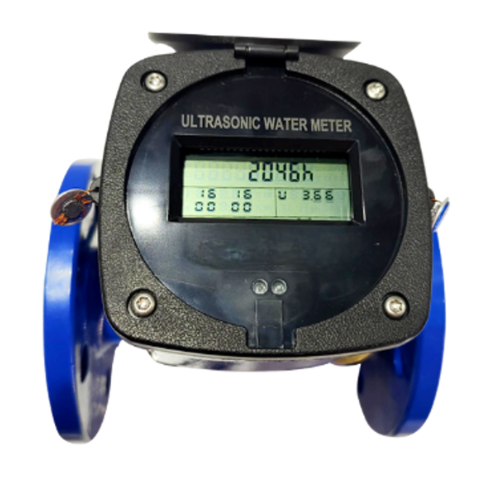

High Precision Ultrasonic Water Meter with IoT and RS485 Support – Enviro Test Construct

Overview

Enviro Test Construct high precision ultrasonic water meter with IoT and RS485 support is an advanced electronic ultrasonic water meter with a large caliber and high precision. It is a metering instrument that uses the ultrasonic time-difference method to continuously measure, record, and display the volume of water flowing through the sensor. It can meet the strict requirements of water metering management departments for accurate measurement of water consumption. The ultrasonic metering water meter is compatible with IoT transmission technology, providing users with different customized solutions. It is widely used in water supply main lines, agricultural irrigation, industrial water use, and other fields.

Features

• Not affected by impurity, chemicals, and magnetic materials in the medium
• No moving parts in the measuring mechanism, free of wear and tear, and accuracy does not degrade over the life of the meter
• Horizontally or vertically mounted
• Low pressure drop
• IP68 protection level, can adapt to various harsh installation environments;
• Support RS485 communication, Pulse output, GPRS, NB-IOT and other data transmission methods.

Technical Specifications
